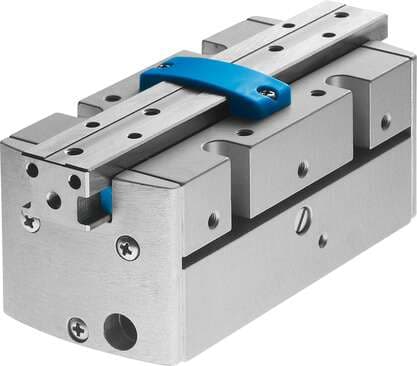

187867 Festo Grippers

Product Details

• Stroke per gripper jaw
  2.5 mm
• Position sensing
  For Hall sensor For inductive proximity sensors
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Max. mass per external gripper finger
  100 g
• Note on materials
  Free of copper and PTFE
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Gripper function
  Parallel
• Design
  Gear rack/pinion
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Gripping force per gripper jaw at 6 bar, opening
  58 N
• Maximum torque on gripper jaw, My static
  3 Nm
• Housing material
  Wrought aluminum alloy Hard-anodized
• Max. interchangeability
  0.1 mm
• Number of gripper jaws
  2
• Symbol
  00991894
• Operating pressure
  2 bar ... 8 bar
• Min. closing time at 6 bar
  40 ms
• Gripping force per gripper jaw at 6 bar, closing
  58 N
• Maximum force on gripper jaw Fz, static
  70 N
• Pneumatic connection
  M3
Cover cap material
POM
Mode of operation
Double-acting
Total gripping force at 6 bar, opening
116 N
Max. operating frequency of pneumatic gripper
4 Hz
Ambient temperature
5 °C ... 60 °C
Maximum torque on gripper jaw, Mx static
3 Nm
Product weight
172 g
Gripper jaw material
Wrought aluminum alloy Nickel-plated
Size
12
Type code
HGPP
Total gripping force at 6 bar, closing
116 N
Min. opening time at 6 bar
27 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Maximum torque on gripper jaw, Mz static
3 Nm
Type of mounting
With internal thread
