185818 Festo Compressed Air Preparation Units

185818 on Powermatic Associates
Festo

Part#:185818

Alt. Part#:FRC-1/4-D-MINI-KC-A

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

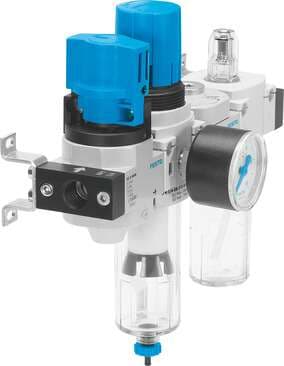

service unit FRC-1/4-D-MINI-KC-A consisting of manual on/off valve, filter regulator, distributor module with pressure switch but without socket, and lubricator with mounting brackets. With automatic condensate drain and metal bowl guard. Size: Mini, Seri

Product Details

  • Maritime classification
    See certificate
  • Actuator lock
    Rotary knob with detent
  • Grade of filtration
    40 µm
  • Operating pressure
    1.5 bar ... 12 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas
  • Product weight
    1400 g
  • Material of bowl
    PC
  • Series
    D
  • Max. condensate volume
    22 ml
  • Pressure gauge
    with pressure gauge
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas
  • Type of mounting
    Optionally: With accessories
  • Note on materials
    Contains paint-wetting impairment substances
  • Design
    Branching module Proportional standard oil mist lubricator
  • Symbol
    00991548
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 2
    G¼
  • Size
    Mini
  • Mounting position
    Vertical +/- 5°
  • Condensate drain
    Fully automatic
  • Pressure regulation range
    0.5 bar ... 12 bar
  • Max. pressure hysteresis
    0.2 bar
  • Pneumatic connection 1
    G1/4
  • Type code
    FRC
  • Bowl guard
    Metal bowl guard
  • Standard nominal flow rate
    870 l/min
  • Temperature of medium
    -10 °C ... 60 °C
  • Housing material
    Die-cast zinc

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
