1758076 Festo Ball Valves

Name: 1758076
Brand: Festo

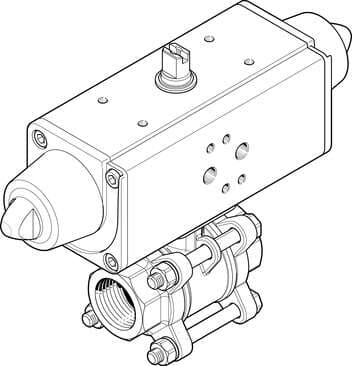

Festo 1758076 ball valve actuator unit VZBA-2"-GG-63-T-22-F0507-V4V4T-PS90-R-90 2/2-way, flange hole pattern F0507, thread EN 10226-1. Design structure: (* 2-way ball valve, * Swivel drive), Type of actuation: pneumatic, Assembly position: Any, Mounting type: Line inst

Part#:1758076

Manufacturer:Festo

Alt. Part#:VZBA-2"-GG-63-T-22-F0507-V4V4T-PS90-R-90

Product Lifecycle:Active

Get a quick Quote!

ball valve actuator unit VZBA-2"-GG-63-T-22-F0507-V4V4T-PS90-R-90 2/2-way, flange hole pattern F0507, thread EN 10226-1. Design structure: (* 2-way ball valve, * Swivel drive), Type of actuation: pneumatic, Assembly position: Any, Mounting type: Line inst

About the manufacturer: Festo is one of the manufacturers that offers Ball Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1758076 Festo price in the box on the right side or send a quick quote.

Product Details

Mounting position
Any
Operating pressure
6 bar ... 8.4 bar
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Explosion group of assembly
IIC, IIIC
Actuation type
Pneumatic
Fitting connection
Rp2
Nominal width DN
50
Flow rate Kv
275 m³/h
Housing material
High-alloy stainless steel
Product weight
10000 g
Design
2-way ball valve Quarter turn actuator
Nominal pressure of fitting PN
63
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Ball material
High-alloy stainless steel
Material number for ball
1.4408
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
Type code
VZBA
Type of mounting
Line installation
Medium
Compressed air as per ISO 8573-1:2010 [-:-:-] Neutral liquids

Ambient temperature

-10 °C ... 80 °C

Seals material

PTFE PTFE-reinforced

Material number for shaft

1.4401

Switching position indication

Slot direction = flow direction

Symbol

00992011

Temperature of medium

-10 °C ... 200 °C

Max. surface temperature of assembly

Material number of housing

1.4408

Explosive ambient temperature

-10°C <= Ta <= +60°C

Shaft material

High-alloy stainless steel

Corrosion resistance class (CRC)

3 - High corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
