175053 Festo Stop Valves

175053 on Powermatic Associates
Festo

Part#:175053

Manufacturer:Festo

Alt. Part#:GRLA-M5-QS-3-LF-C

Product Lifecycle:Active

Get a quick Quote!

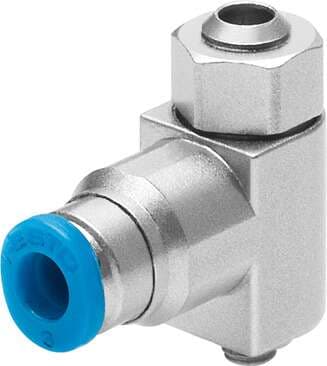

one-way flow control valve GRLA-M5-QS-3-LF-C Valve function: One-way flow control function for exhaust air, Pneumatic connection, port 1: QS-3, Pneumatic connection, port 2: M5, Adjusting element: Slotted head screw, Mounting type: Threaded

About the manufacturer: Festo is one of the manufacturers that offers Stop Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 175053 Festo price in the box on the right side or send a quick quote.

Product Details

  • Pneumatic connection 2
    M5
  • Type code
    GRLA
  • Standard nominal flow rate in flow control direction
    40 l/min
  • Symbol
    00991452
  • Temperature of medium
    -10 °C ... 60 °C
  • Product weight
    9 g
  • Material of adjusting screw
    Brass
  • Maritime classification
    See certificate
  • Operating pressure
    2.9 psi ... 145 psi
  • Standard flow rate in non-return direction at 6 -> 0 bar
    90 l/min ... 140 l/min
  • Max. tightening torque
    1.5 Nm
  • Releasing ring material
    POM
  • Pneumatic connection 1
    QS-3
  • Type of mounting
    Screw-in
  • Mounting position
    Any
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Material of screwed trunnion
    Brass Nickel-plated
  • Swivel joint material
    Die-cast zinc
  • Standard nominal flow rate in non-return direction
    46 l/min ... 70 l/min
  • Standard flow rate in flow control direction 6 -> 0 bar
    80 l/min
  • Seals material
    NBR
  • Valve function
    Exhaust air flow control non-return function
  • Adjusting element
    Slotted screw
  • Ambient temperature
    -10 °C ... 60 °C
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 175053 Specs

175053 175053 DataSheet.pdf
