173821 Festo Compressed Air Preparation Units
Part#:173821
Alt. Part#:LOE-1/4-D-MINI-NPT
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

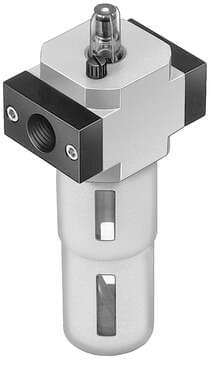

lubricator LOE-1/4-D-MINI-NPT With metal bowl guard. Max. oil capacity: 45 cm3, Bowl guard: Metal bowl guard, Operating pressure: 16 bar, Minimum flow rate for lubricator function: 3 l/min, Standard nominal flow rate: 2300 l/min
Product Details
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Max. oil capacity 45 cm³
- Standard nominal flow rate 2300 l/min
- Type of mounting With accessories
- Type code LOE
- Operating pressure 16 bar
- Temperature of medium -10 °C ... 60 °C
- Information on operating and pilot media Operation with oil lubrication not possible
- Product weight 270 g
- Bowl guard Metal bowl guard
- Minimum flow rate for lubricator function 3 l/min
- Ambient temperature -10 °C ... 60 °C
- Material of bowl PC
- Symbol 00991532
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas
- Pneumatic connection 2 1/4 NPT
- Note on materials RoHS-compliant
- Pneumatic connection 1 1/4 NPT
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
