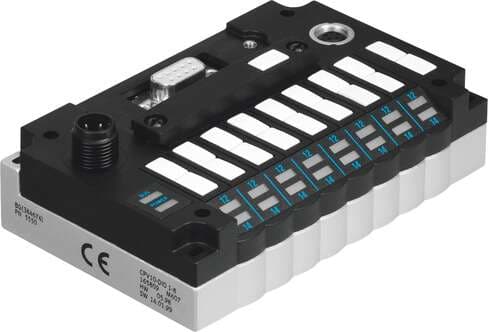

165809 Festo Valve Manifold Accessories

Product Details

• Device-specific diagnostics
  Via device-specific diagnostics (DPV0) Undervoltage of pneumatic valves
• Configuration support
  GSD file and bitmaps
• DC operating voltage range
  20.4 V ... 26.4 V
• Degree of protection
  IP65
• CP string extension
  yes 8 outputs (or 16 pneumatic valves)
• Communication types
  Cyclic communication
• Baud rate
  9.6 kBd ... 12 MBaud Automatic detection
• Power failure buffering
  10 ms
• Residual ripple
  4 Vss
• Addressing range
  1 ... 125 Setting via switch module
• Seals material
  CR NBR
• Type code
  CPV10
• Reverse polarity protection
  for all electrical connections
• Nominal operating voltage DC
  24 V
• Storage temperature
  -20 °C ... 70 °C
• Galvanic isolation fieldbus interface
  Optocoupler
• Cover material
  PA-reinforced
• Fieldbus interface
  Optionally: Sub-D, 9-pin, socket
• Max. no. of solenoid coils
  16
• Max. number of inputs
  16
Current consumption at nominal operating voltage
Electronics: <= 100 mA Sensor supply: depends on sensor
Certification
c UL us - Recognized (OL)
Product identification
Product line: 4: pneumatic valves
Max. no. of solenoid coils with string extension
32
Max. no. of outputs
8 (16 valve coils omitted)
Current consumption at load nominal operating voltage
Depends on pneumatic valve type
Ambient temperature
-5 °C ... 50 °C
LED display (bus-specific)
BUS: communication and configuration error
Note on materials
RoHS-compliant
Fieldbus certification
PNO
LED display (product-specific)
12/14: switching status of pneumatic valves POWER: operating voltage for electronics and load supply
Housing material
Die-cast aluminum
