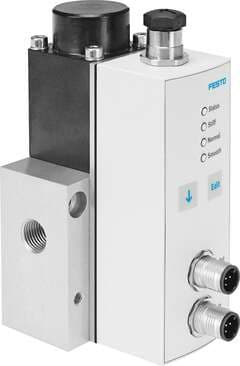

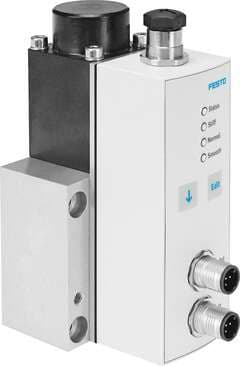

1635975 Festo Proportional Valves

Product Details

• KC characters
  KC EMC
• Sealing principle
  Soft
• Symbol
  00995268
• Valve function
  3-way proportional pressure control valve closed
• Electrical connection, diagnostic interface
  Socket, M12, 5-pin, A-coded
• Pneumatic connection 1
  Flange G1/4
• Exhaust nominal width
  2.5 mm
• Mounting position
  Any Preferably upright
• Reset method
  Mechanical spring
• Operating pressure
  ≤ 20 bar
• Max. pressure hysteresis
  0.2 bar
• Standard nominal flow rate
  300 l/min
• Switching time off
  550 ms
• Analog input signal range
  0 - 10 V
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
• Degree of protection
  IP65
• Product weight
  1100 g
• Electrical connection IN
  Plug, M12, 5-pin, A-coded
• Pneumatic connection 3
  Flange
• Note on materials
  RoHS-compliant
Nominal width pressurization
2.5 mm
Type code
VPPL
Design
Directly controlled piston regulator
Type of control
Direct
Pressure regulation range
0.2 bar ... 20 bar
C value
0.8 l/sbar
Duty cycle
100%
Residual ripple
10 %
Setpoint/actual values
Voltage type 0 - 10 V
CE marking (see declaration of conformity)
As per EU EMC directive
Ambient temperature
5 °C ... 50 °C
Electrical connection OUT
Plug, M12, 5-pin, A-coded
Actuation type
Electrical
Safety instructions
VPPL safety position: if the power supply cable breaks, the outlet pressure will drop to 0 bar.
Inlet pressure 1
0 bar ... 50 bar
DC operating voltage range
21.6 V ... 27.6 V
Analog output signal range
4 - 20 mA
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
5 °C ... 50 °C
Linearity error in ± % FS
0.5 %FS
Type of mounting
With through-hole
Short-circuit protection
no
Reverse polarity protection
for all electrical connections
Display type
LED display
b-value
0.25
On switching time
300 ms
Max. electrical power consumption
26.7 W
Information on operating and pilot media
Operation with oil lubrication not possible
Temperature coefficient
0.04 %/K
Repetition accuracy in ± %FS
0.5 %FS
Pneumatic connection 2
Flange
Housing material
Wrought aluminum alloy Anodized

Related documents 1635975 Specs
