162744 Festo Compressed Air Preparation Units

162744 on Powermatic Associates
Festo

Part#:162744

Alt. Part#:FRC-3/4-D-O-MAXI

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

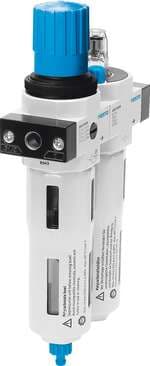

service unit FRC-3/4-D-O-MAXI Filter/regulator/lubricator combination, 40 µm filter, with metal bowl guard. With manual condensate drain. Without pressure gauge. Size: Maxi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/-

Product Details

  • Size
    Maxi
  • Condensate drain
    Manually rotating
  • Grade of filtration
    40 µm
  • Operating pressure
    1 bar ... 16 bar
  • Ambient temperature
    -10 °C ... 60 °C
  • Maritime classification
    See certificate
  • Actuator lock
    Rotary knob with detent
  • Design
    Filter regulator without pressure gauge Proportional standard oil mist lubricator
  • Pressure gauge
    G1/4 prepared
  • Standard nominal flow rate
    8300 l/min
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:8:-] Inert gas
  • Note on materials
    RoHS-compliant
  • Material of bowl
    PC
  • Series
    D
  • Mounting position
    Vertical +/- 5°
  • Symbol
    00991775
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 1
    G3/4
  • Type code
    FRC
  • Max. condensate volume
    80 ml
  • Bowl guard
    Metal bowl guard
  • Max. pressure hysteresis
    0.4 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Type of mounting
    Line installation With accessories
  • Housing material
    Die-cast zinc
  • Pressure regulation range
    0.5 bar ... 12 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Product weight
    2280 g
  • Pneumatic connection 2
    G3/4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
