162742 Festo Compressed Air Preparation Units

162742 on Powermatic Associates
Festo

Part#:162742

Alt. Part#:FRC-1/2-D-O-MIDI

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

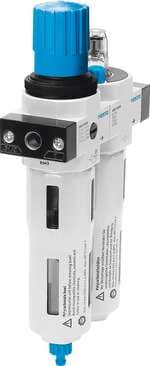

service unit FRC-1/2-D-O-MIDI Filter/regulator/lubricator combination, 40 µm filter, with metal bowl guard. With manual condensate drain. Without pressure gauge. Size: Midi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/-

Product Details

  • Max. condensate volume
    43 ml
  • Pressure regulation range
    0.5 bar ... 12 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Ambient temperature
    -10 °C ... 60 °C
  • Material of bowl
    PC
  • Maritime classification
    See certificate
  • Mounting position
    Vertical +/- 5°
  • Bowl guard
    Metal bowl guard
  • Pressure gauge
    G1/4 prepared
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas
  • Type of mounting
    Line installation With accessories
  • Size
    Midi
  • Actuator lock
    Rotary knob with detent
  • Condensate drain
    Manually rotating
  • Symbol
    00991550
  • Operating pressure
    1 bar ... 16 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [7:8:-] Inert gas
  • Note on materials
    RoHS-compliant
  • Design
    Filter regulator with pressure gauge Proportional standard oil mist lubricator
  • Max. pressure hysteresis
    0.2 bar
  • Product weight
    1350 g
  • Housing material
    Die-cast zinc
  • Type code
    FRC
  • Series
    D
  • Grade of filtration
    40 µm
  • Standard nominal flow rate
    2600 l/min
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 2
    G1/2
  • Pneumatic connection 1
    G1/2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

162742 Related Documents

162742 DataSheet.pdf
