162514 Festo Vacuum Generators

Name: 162514
Brand: Festo

Part#:162514

Manufacturer:Festo

Category:Vacuum Generators

Alt. Part#:VADM-70-P

Product Lifecycle:Active

Get a quick Quote!

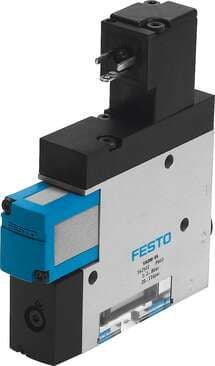

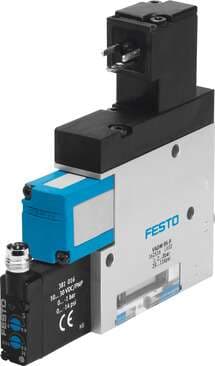

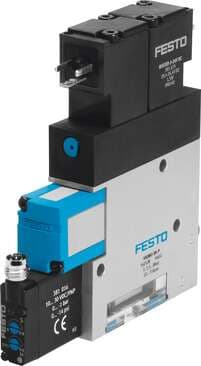

vacuum generator VADM-70-P Nominal size, Laval nozzle: 0,7 mm, Grid dimension: 15 mm, Design, silencer: closed, Assembly position: Any, Ejector characteristic: High vacuum

About the manufacturer: Festo is one of the manufacturers that offers Vacuum Generators that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 162514 Festo price in the box on the right side or send a quick quote.

Product Details

Width dimension
15 mm
Mounting position
Any
Measuring principle
Piezoresistive
Valve function
Closed
Operating pressure
1.5 bar ... 8 bar
Max. vacuum
85 %
Duty cycle
100%
Ambient temperature
0 °C ... 50 °C
Pneumatic connection 1
M5
Seals material
NBR
Nominal width of Laval nozzle
0.7 mm
Integrated function
Ejector pulse valve, electric Vacuum switch
Measured variable
Relative pressure
Setting range threshold value
-0.9 bar ... 0 bar
Setting range hysteresis
-0.5 bar ... -0.05 bar
Air supply time at nominal operating pressure
2.2 s
Temperature of medium
0 °C ... 60 °C
Product weight
145 g
Vacuum connection
G1/8
Material of filter housing
PC

Type code

VADM

Ejector characteristics

High vacuum

Switching element function

N/O contact

Reverse polarity protection

for all electrical connections

Setting options

Potentiometer

Switching output

PNP

Degree of protection

IP65

Certification

RCM compliance mark c UL us - Recognized (OL)

Type of mounting

Optionally: With internal thread

Compressed air filter material

Material of piston

POM

Muffler construction type

Closed

Grade of filtration

≤ 40 µm

Manual override

Non-detenting

Symbol

00991304

DC operating voltage range

21.6 V ... 26.4 V

Information on operating and pilot media

Operation with oil lubrication not possible

Electrical connection

4-pin Plug

Pneumatic connection 3

Pneumatic muffler integrated

Female nozzle material

Brass, nickel-plated

Material of jet nozzle

Brass, nickel-plated

Switching function

Threshold value comparator

Display type

LED

Switching status indication

Optical

Nominal operating pressure

6 bar

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

CE marking (see declaration of conformity)

As per EU EMC directive

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Pressure measuring range

0 bar ... 1 bar

Note on materials

Free of copper and PTFE RoHS-compliant

Muffler material

PE POM

Housing material

Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
