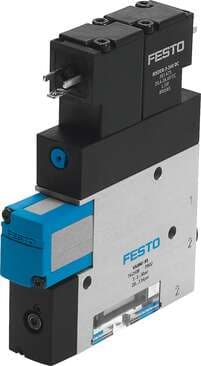

162509 Festo Vacuum Generators

Product Details

• Nominal width of Laval nozzle
  1.4 mm
• Mounting position
  Any
• Symbol
  00991305
• Max. vacuum
  85 %
• Nominal operating pressure
  6 bar
• Duty cycle
  100%
• Certification
  c UL us - Recognized (OL)
• Vacuum connection
  G1/4
• Material of filter housing
  PC
• Muffler construction type
  Closed
• Integrated function
  Ejector pulse valve, electric Non-return valve
• Valve function
  Closed
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  Optionally: With internal thread
• Pneumatic connection 3
  Pneumatic muffler integrated
• Seals material
  NBR
• Material of jet nozzle
  Brass, nickel-plated
• Width dimension
  22 mm
• Ejector characteristics
  High vacuum
• Operating pressure
  2 bar ... 8 bar
DC operating voltage range
21.6 V ... 26.4 V
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Degree of protection
IP65
Electrical connection
Plug
Female nozzle material
Brass, nickel-plated
Compressed air filter material
PA
Temperature of medium
0 °C ... 60 °C
Pneumatic connection 1
G1/8
Housing material
Wrought aluminum alloy
Material of piston
POM
Type code
VADMI
Grade of filtration
≤ 40 µm
Manual override
Non-detenting
Air supply time at nominal operating pressure
0.19 s
Information on operating and pilot media
Operation with oil lubrication not possible
Ambient temperature
0 °C ... 60 °C
Product weight
320 g
Note on materials
Free of copper and PTFE RoHS-compliant
Muffler material
PE POM
