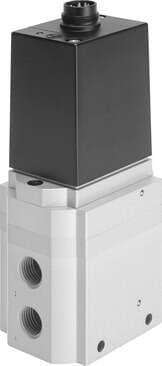

161173 Festo Proportional Valves

Product Details

• KC characters
  KC EMC
• Short-circuit protection
  For all electrical connections
• Operating pressure
  ≤ 8 bar
• Reference voltage
  10 V
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Ambient temperature
  0 °C ... 50 °C
• Type of mounting
  With through-hole
• Note on materials
  RoHS-compliant
• Type code
  MPPE
• Safety instructions
  MPPE-B safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
• Valve function
  3-way proportional pressure control valve closed
• On switching time
  170 ms
• DC operating voltage range
  18 V ... 30 V
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Degree of protection
  IP65
• Electrical connection
  8-pin Round design
• Pneumatic connection 3
  G1/2
• Exhaust nominal width
  12 mm
• Sealing principle
  Soft
• Symbol
  00995303
Inlet pressure 1
7 bar ... 8 bar
Setpoint/actual values
Voltage type 0 - 10 V
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pneumatic connection 1
G1/2
Actuation type
Electrical
Design
Pilot-controlled piston control valve
Switching time off
510 ms
Max. pressure hysteresis
0.04 bar
Residual ripple
10 %
Temperature of medium
0 °C ... 60 °C
Product weight
2400 g
Housing material
Wrought aluminum alloy
Nominal width pressurization
11 mm
Mounting position
Any
Reverse polarity protection
for all electrical connections
Pressure regulation range
0 bar ... 6 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Certification
RCM compliance mark
Pneumatic connection 2
G1/2
Diaphragm material
NBR
