161163 Festo Proportional Valves

Name: 161163
Brand: Festo

Part#:161163

Manufacturer:Festo

Alt. Part#:MPPE-3-1/8-1-420-B

Product Lifecycle:Active

Get a quick Quote!

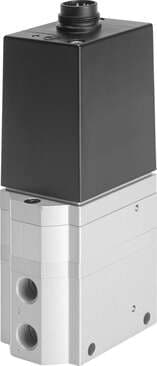

proportional pressure regulator MPPE-3-1/8-1-420-B Nominal diameter, pressurisation: 5 mm, Nominal diameter, exhaust: 5 mm, Type of actuation: electrical, Sealing principle: soft, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Proportional Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 161163 Festo price in the box on the right side or send a quick quote.

Product Details

Reverse polarity protection
for all electrical connections
Switching time off
165 ms
Residual ripple
10 %
Temperature of medium
0 °C ... 60 °C
Electrical connection
8-pin Round design
Diaphragm material
NBR
Type code
MPPE
Sealing principle
Soft
Safety instructions
MPPE-B safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
Operating pressure
≤ 2 bar
DC operating voltage range
18 V ... 30 V
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Degree of protection
IP65
Pneumatic connection 1
G1/8
Pneumatic connection 3
G1/8
Nominal width pressurization
5 mm
Short-circuit protection
For all electrical connections
Design
Pilot-controlled piston control valve
Pressure regulation range
0 bar ... 1 bar
Reference voltage
10 V

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Ambient temperature

0 °C ... 50 °C

Certification

RCM compliance mark

Exhaust nominal width

5 mm

Mounting position

Any

Symbol

00995303

On switching time

95 ms

Setpoint/actual values

Current type 4–20 mA

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Type of mounting

With through-hole

KC characters

KC EMC

Actuation type

Electrical

Valve function

3-way proportional pressure control valve closed

Max. pressure hysteresis

0.03 bar

Inlet pressure 1

1.5 bar ... 2 bar

CE marking (see declaration of conformity)

As per EU EMC directive

Product weight

710 g

Pneumatic connection 2

G1/8

Note on materials

RoHS-compliant

Housing material

Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
