15883 Festo Pneumatic Components

15883 on Powermatic Associates
Festo

Part#:15883

Alt. Part#:EG-2,5-5-PK-2

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

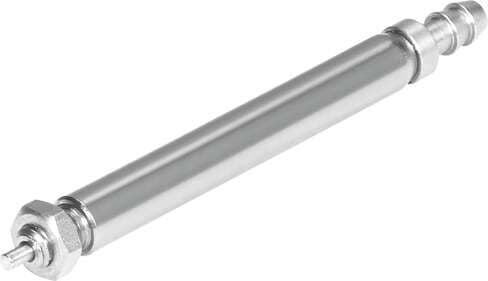

round cylinder EG-2,5-5-PK-2 Micro Pneumatic Stroke: 5 mm, Piston diameter: 2,5 mm, Cushioning: No cushioning, Assembly position: Any, Design structure: (* Piston, * Piston rod, * Cylinder barrel)

Product Details

  • Position sensing
    None
  • Variants
    Piston rod at one end
  • Theoretical min. spring return force
    0.5 N
  • Material of cylinder barrel
    Brass, nickel-plated
  • Type code
    EG
  • Symbol
    00991200
  • Theoretical force at 6 bar, advancing
    1.9 N
  • Pneumatic connection
    PK-2
  • Piston rod material
    High-alloy stainless steel
  • Piston diameter
    2.5 mm
  • Mounting position
    Any
  • Mode of operation
    Single-acting Pushing
  • Theoretical max. spring return force
    1 N
  • Note on materials
    RoHS-compliant
  • Stroke
    5 mm
  • Design
    Piston Cylinder barrel
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Ambient temperature
    5 °C ... 60 °C
  • Type of mounting
    With lock nut
  • Seals material
    NBR
  • Cushioning
    No cushioning
  • Operating pressure
    3.5 bar ... 7 bar
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Product weight
    2 g
  • Cover material
    High-alloy steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

15883 Related Documents

15883 DataSheet.pdf
