157512 Festo Actuator Accessories

157512 on Powermatic Associates
Festo

Part#:157512

Alt. Part#:SNGB-250

Manufacturer:Festo

Category:Actuator Accessories

Product Lifecycle:Active

Product description

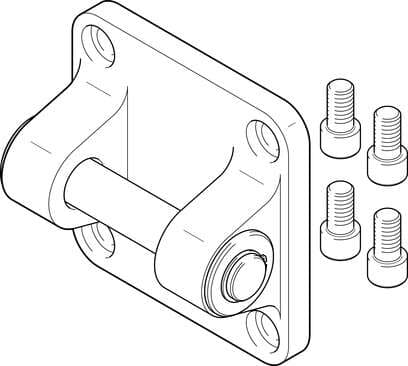

swivel flange SNGB-250 Suitable clevis foot LN, LSN. Size: 250, Based on the standard: ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290), Corrosion resistance classification CRC: 1 - Low corrosion stress, Ambient temperature: -40 -

Product Details

  • Size
    250
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Fuse material
    Spring steel, galvanized
  • Type code
    SNGB
  • Ambient temperature
    -40 °C ... 90 °C
  • Mounting material
    Spherulitic graphite iron
  • Material of bearing
    Polymer
  • Disc material
    Steel, galvanized
  • Based on norm
    ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)
  • Product weight
    16141 g
  • Bolt material
    Steel Galvanized
  • Material of screws
    Steel Galvanized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
