1574688 Festo Servo Motors

1574688 on Powermatic Associates
Festo

Part#:1574688

Alt. Part#:EMMS-AS-140-L-HV-RS-S1

Manufacturer:Festo

Category:Servo Motors

Product Lifecycle:Active

Product description

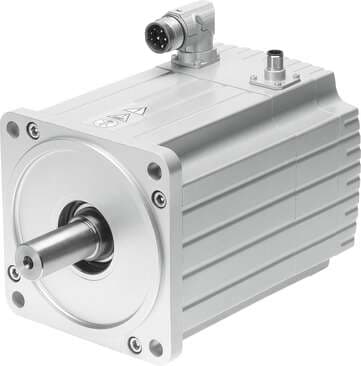

servo motor EMMS-AS-140-L-HV-RS-S1 Without gear unit. Ambient temperature: -10 - 40 °C, Storage temperature: -20 - 60 °C, Relative air humidity: 0 - 90 %, Conforms to standard: IEC 60034, Insulation protection class: F

Product Details

  • Rotor position sensor interface
    EnDat® 22
  • Rotor position sensor measuring principle
    Inductive
  • Motor nominal current
    9.96 A
  • Type of winding switch
    Star inside
  • Storage temperature
    -20 °C ... 60 °C
  • Peak torque
    67.5 Nm
  • MTTF, subcomponent
    76 years, rotor position sensor
  • MTTFd, subcomponent
    152 years, rotor position sensor
  • Type code
    EMMS-AS
  • Temperature monitoring
    PTC resistor
  • Motor nominal power
    5110 W
  • Winding inductance phase-phase
    4.65 mH
  • Rating class according to EN 60034-1
    S1
  • Ambient temperature
    -10 °C ... 40 °C
  • Stall torque
    25.5 Nm
  • Product weight
    16200 g
  • Rotor position sensor
    Absolute encoder, single-turn
  • Nominal rotary speed
    2800 1/min
  • DC nominal voltage
    565 V
  • Voltage constant, phase-to-phase
    104.41 mVmin
  • CE marking (see declaration of conformity)
    As per EU EMC directive As per EU low voltage directive
  • Nominal torque
    17.41 Nm
  • Permissible axial shaft load
    200 N
  • Conforms to standard
    IEC 60034
  • Motor constants
    1.75 Nm/A
  • Phase-phase winding resistance
    0.586 Ohm
  • Peak current
    51.5 A
  • Degree of protection
    IP65
  • Total output inertia moment
    19.027 kgcm²
  • Certification
    RCM compliance mark c UL us - Recognized (OL)
  • Note on materials
    RoHS-compliant
  • Number of pole pairs
    6
  • Max. rotational speed
    3830 1/min
  • Insulation protection class
    F
  • Rotor position sensor resolution
    18 bit
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Relative air humidity
    0 - 90 %
  • Permissible radial shaft load
    1060 N
  • Electrical connection technology
    Plug

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
