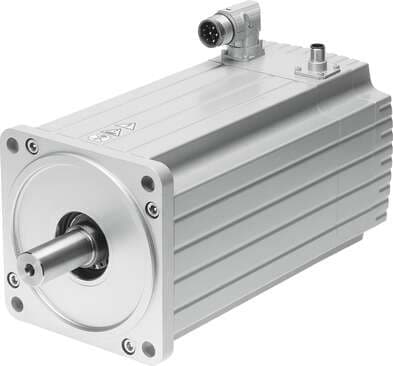

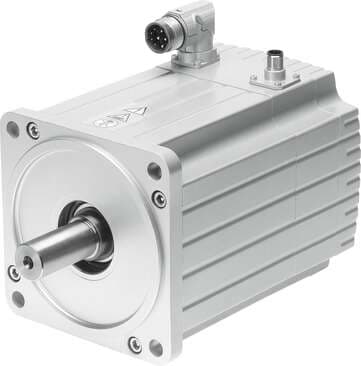

1574674 Festo Servo Motors
Part#:1574674
Alt. Part#:EMMS-AS-140-LK-HS-RR-S1
Manufacturer:Festo
Category:Servo Motors
Product Lifecycle:Active
Product description
servo motor EMMS-AS-140-LK-HS-RR-S1 Without gear unit. Ambient temperature: -40 - 40 °C, Storage temperature: -20 - 60 °C, Relative air humidity: 0 - 90 %, Conforms to standard: IEC 60034, Insulation protection class: F
Product Details
- Number of pole pairs 6
- Winding inductance phase-phase 13.44 mH
- Type code EMMS-AS
- Max. rotational speed 2460 1/min
- Motor nominal power 4420 W
- Peak current 20 A
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Degree of protection IP65
- Permissible axial shaft load 200 N
- Product weight 16440 g
- Featherkey shaft design DIN 6885 A 8 x 7 x 40
- Temperature monitoring PTC resistor
- Motor constants 2.72 Nm/A
- Motor nominal current 7.8 A
- Type of winding switch Star inside
- Storage temperature -20 °C ... 60 °C
- Relative air humidity 0 - 90 %
- Stall torque 25.6 Nm
- Electrical connection technology Plug
- Rotor position sensor Resolver
- Rotor position sensor measuring principle Inductive
- Insulation protection class F
- DC nominal voltage 565 V
- Voltage constant, phase-to-phase 162.39 mVmin
- CE marking (see declaration of conformity) As per EU EMC directive As per EU low voltage directive
- Nominal torque 21.12 Nm
- MTTF, subcomponent 114 years, rotor position sensor
- Rotor position sensor interface SIN/COS analog signals
- Nominal rotary speed 2000 1/min
- Phase-phase winding resistance 1.41 Ohm
- Rating class according to EN 60034-1 S1
- Certification RCM compliance mark c UL us - Recognized (OL)
- Total output inertia moment 18.4 kgcm²
- Note on materials RoHS-compliant
- Ambient temperature -40 °C ... 40 °C
- Peak torque 48.8 Nm
- Permissible radial shaft load 1060 N
- MTTFd, subcomponent 228 years, rotor position sensor
- Conforms to standard IEC 60034
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
