153500 Festo Pressure Control Valves

153500 on Powermatic Associates
Festo

Part#:153500

Alt. Part#:LRLL-M5-QS-6

Manufacturer:Festo

Category:Pressure Control Valves

Product Lifecycle:Active

Product description

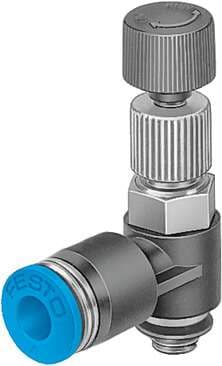

differential pressure regulator LRLL-M5-QS-6 Without manometer, with male thread and QS plug connector. Controller function: (* Differential pressure, constant, * with return flow), Pneumatic connection, port 1: M5, Pneumatic connection, port 2: QS-6, M

Product Details

  • Type code
    LRLL
  • Type of mounting
    Screw-in
  • Mounting position
    Any
  • Design
    Directly controlled piston regulator with continuous compressed air supply
  • Pneumatic connection 1
    M5
  • Pressure regulation range
    2 bar ... 6 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Note on materials
    RoHS-compliant
  • Ambient temperature
    0 °C ... 60 °C
  • Symbol
    00991535
  • Material of threaded seal
    PTFE
  • Controller function
    Differential pressure constant With return flow function
  • Nominal flow rate, open
    32 l/min
  • Housing material
    PBT-reinforced
  • Nominal flow rate, closed
    31 l/min
  • Material of screwed trunnion
    Brass Nickel-plated
  • Pneumatic connection 2
    QS-6
  • Inlet pressure 1
    0 bar ... 9 bar
  • Actuator lock
    Counter-locking
  • Product weight
    10 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
