153446 Festo Stop Valves (non-return)

153446 on Powermatic Associates
Festo

Part#:153446

Alt. Part#:HA-1/8-QS-4

Manufacturer:Festo

Category:Stop Valves (non-return)

Product Lifecycle:Active

Product description

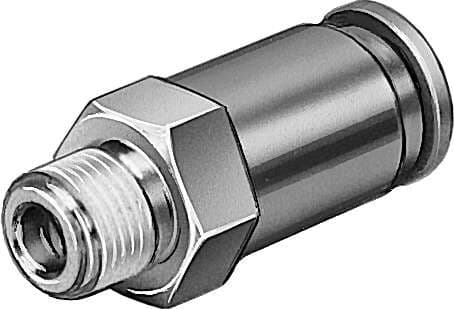

non-return valve HA-1/8-QS-4 Flow rate from the male thread to the QS plug connector. Valve function: Non-return function, Pneumatic connection, port 1: R1/8, Pneumatic connection, port 2: QS-4, Mounting type: Threaded, Standard nominal flow rate: 138 l

Product Details

  • Ambient temperature
    0 °C ... 60 °C
  • Symbol
    00991455
  • Product weight
    11 g
  • Type code
    HA
  • Pneumatic connection 2
    QS-4
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Min. differential pressure, opening
    0.1 bar
  • Pneumatic connection 1
    R1/8
  • Standard nominal flow rate
    138 l/min
  • Min. differential pressure, closing
    0.2 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Valve function
    Non-return function
  • Type of mounting
    Screw-in
  • Operating pressure
    -1 bar ... 10 bar
  • Housing material
    Brass, nickel-plated
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

153446 Related Documents

153446 DataSheet.pdf
