1492386 Festo Process & Media Valves
Part#:1492386
Alt. Part#:VZWF-B-L-M22C-N1-275-V-3AP4-6
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

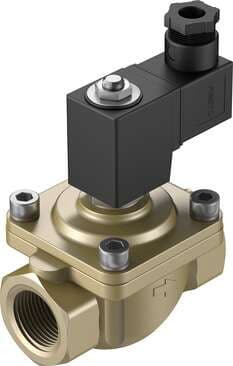

solenoid valve VZWF-B-L-M22C-N1-275-V-3AP4-6 force pilot operated, NPT1" connection. Design structure: (* Diaphragm valve, * forced), Type of actuation: electrical, Sealing principle: soft, Assembly position: Magnet standing, Mounting type: Line installat
Product Details
- Design Diaphragm valve Force pilot operated
- Sealing principle Soft
- Electrical connection Form A Rectangular design
- Nominal pressure of fitting PN 40
- Differential pressure 0 bar
- Ambient temperature -10 °C ... 35 °C
- Leak rate to EN 12266-1 A
- Product weight 1500 g
- Standard nominal flow rate 11750 l/min
- Actuation type Electrical
- Symbol 00992976
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Material of screws High-alloy stainless steel
- Fitting connection 1 NPT
- Type code VZWF
- Temperature of medium -10 °C ... 80 °C
- Flow rate Kv 11 m³/h
- Material number of housing CW617N
- Material number of screw 1.4301
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Mounting position Magnet, upright
- Type of mounting Line installation
- Nominal width 27.5 mm
- Medium Compressed air as per ISO 8573-1:2010 [7:-:-] Other flow media on request
- Flow direction Non-reversible
- Coil characteristics 230 V AC: 50/60 Hz, initial power 18.0 VA, holding power 15.0 VA
- Max. viscosity 22 mm²/s
- On switching time 275 ms
- Housing material Cast brass
- CE marking (see declaration of conformity) As per EU low voltage directive
- Valve function 2/2, closed, monostable
- Manual override None
- Permissible voltage fluctuations +/- 10 %
- Medium pressure 0 bar ... 6 bar
- Switching time off 290 ms
- Seals material FPM
- Degree of protection IP65
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
