1492359 Festo Process & Media Valves

Name: 1492359
Brand: Festo

Part#:1492359

Manufacturer:Festo

Alt. Part#:VZWF-B-L-M22C-N38-135-3AP4-10-R1

Product Lifecycle:Active

Get a quick Quote!

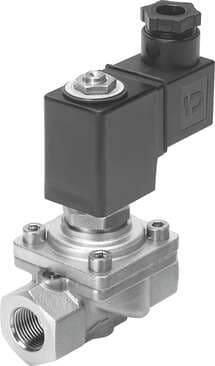

solenoid valve VZWF-B-L-M22C-N38-135-3AP4-10-R1 force pilot operated, NPT3/8" connection. Design structure: (* Diaphragm valve, * forced), Type of actuation: electrical, Sealing principle: soft, Assembly position: Magnet standing, Mounting type: Line inst

About the manufacturer: Festo is one of the manufacturers that offers Process & Media Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1492359 Festo price in the box on the right side or send a quick quote.

Product Details

Design
Diaphragm valve Force pilot operated
Nominal width
13.5 mm
Differential pressure
0 bar
Symbol
00992976
Ambient temperature
-10 °C ... 35 °C
Leak rate to EN 12266-1
A
Switching time off
180 ms
Material number of screw
1.4301
Type of mounting
Line installation
Manual override
None
Coil characteristics
230 V AC: 50/60 Hz, initial power 18.0 VA, holding power 15.0 VA
Temperature of medium
-10 °C ... 80 °C
On switching time
130 ms
Material number of housing
1.4581
Degree of protection
IP65
Corrosion resistance class (CRC)
3 - High corrosion stress
Type code
VZWF
Sealing principle
Soft
Fitting connection
3/8 NPT
Flow direction
Non-reversible

Nominal pressure of fitting PN

Medium pressure

0 bar ... 10 bar

Standard nominal flow rate

2350 l/min

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Product weight

1000 g

Actuation type

Electrical

Mounting position

Magnet, upright

Valve function

2/2, closed, monostable

Medium

Compressed air as per ISO 8573-1:2010 [7:-:-] Other flow media on request

Permissible voltage fluctuations

+/- 10 %

Max. viscosity

22 mm²/s

Flow rate Kv

2.2 m³/h

Housing material

Cast stainless steel

Seals material

NBR

CE marking (see declaration of conformity)

As per EU low voltage directive

Electrical connection

Form A Rectangular design

Material of screws

High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
