1492259 Festo Process & Media Valves
Part#:1492259
Alt. Part#:VZWF-L-M22C-N114-400-2AP4-10
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

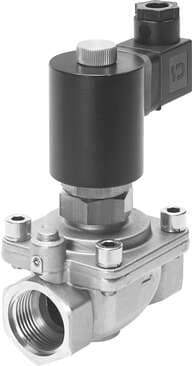

solenoid valve VZWF-L-M22C-N114-400-2AP4-10 force pilot operated, NPT11/4" connection. Design structure: (* Diaphragm valve, * forced), Type of actuation: electrical, Sealing principle: soft, Assembly position: Magnet standing, Mounting type: Line install
Product Details
- Sealing principle Soft
- Electrical connection Form A Rectangular design
- Flow direction Non-reversible
- Permissible voltage fluctuations +/- 10 %
- Leak rate to EN 12266-1 A
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Material of screws High-alloy stainless steel
- CE marking (see declaration of conformity) as per EU pressure equipment directive As per EU low voltage directive
- Nominal width 40 mm
- Nominal pressure of fitting PN 40
- Medium pressure 0 bar ... 10 bar
- Flow rate Kv 20 m³/h
- Switching time off 1140 ms
- Product weight 4500 g
- Actuation type Electrical
- Type of mounting Line installation
- Manual override None
- Medium Compressed air as per ISO 8573-1:2010 [7:-:-] Other flow media on request
- Temperature of medium -10 °C ... 80 °C
- Housing material Cast brass
- Seals material NBR
- Type code VZWF
- Fitting connection 1 1/4 NPT
- Coil characteristics 110 V AC: 50/60 Hz, initial power 30.0 VA, holding power 30.0 VA
- Symbol 00992976
- On switching time 620 ms
- Material number of housing CW617N
- Degree of protection IP65
- Design Diaphragm valve Force pilot operated
- Mounting position Magnet, upright
- Valve function 2/2, closed, monostable
- Differential pressure 0 bar
- Max. viscosity 22 mm²/s
- Ambient temperature -10 °C ... 35 °C
- Standard nominal flow rate 21370 l/min
- Material number of screw 1.4301
- Corrosion resistance class (CRC) 1 - Low corrosion stress
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
