1492228 Festo Process & Media Valves

1492228 on Powermatic Associates
Festo

Part#:1492228

Manufacturer:Festo

Alt. Part#:VZWF-L-M22C-G112-400-E-2AP4-10

Product Lifecycle:Active

Get a quick Quote!

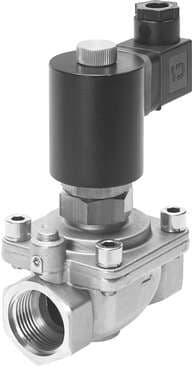

solenoid valve VZWF-L-M22C-G112-400-E-2AP4-10 force pilot operated, G11/2" connection. Design structure: (* Diaphragm valve, * forced), Type of actuation: electrical, Sealing principle: soft, Assembly position: Magnet standing, Mounting type: Line install

About the manufacturer: Festo is one of the manufacturers that offers Process & Media Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1492228 Festo price in the box on the right side or send a quick quote.

Product Details

  • Design
    Diaphragm valve Force pilot operated
  • Fitting connection
    G1 1/2
  • Type code
    VZWF
  • Type of mounting
    Line installation
  • Valve function
    2/2, closed, monostable
  • Differential pressure
    0 bar
  • Temperature of medium
    -10 °C ... 80 °C
  • Standard nominal flow rate
    23500 l/min
  • Housing material
    Cast brass
  • CE marking (see declaration of conformity)
    as per EU pressure equipment directive As per EU low voltage directive
  • Nominal width
    40 mm
  • Nominal pressure of fitting PN
    40
  • Coil characteristics
    110 V AC: 50/60 Hz, initial power 30.0 VA, holding power 30.0 VA
  • Max. viscosity
    22 mm²/s
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Degree of protection
    IP65
  • Sealing principle
    Soft
  • Electrical connection
    Form A Rectangular design
  • Flow direction
    Non-reversible
  • Symbol
    00992976
  • Ambient temperature
    -10 °C ... 35 °C
  • Switching time off
    1140 ms
  • Material number of screw
    1.4301
  • Product weight
    4500 g
  • Actuation type
    Electrical
  • Mounting position
    Magnet, upright
  • Manual override
    None
  • Permissible voltage fluctuations
    +/- 10 %
  • Flow rate Kv
    22.5 m³/h
  • On switching time
    620 ms
  • Material of screws
    High-alloy stainless steel
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Medium
    Compressed air as per ISO 8573-1:2010 [7:-:-] Other flow media on request
  • Medium pressure
    0 bar ... 10 bar
  • Leak rate to EN 12266-1
    A
  • Material number of housing
    CW617N
  • Seals material
    EPDM

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 1492228 Specs

1492228 1492228 DataSheet.pdf
