1492219 Festo Process & Media Valves

Name: 1492219
Brand: Festo

Part#:1492219

Manufacturer:Festo

Alt. Part#:VZWF-L-M22C-G114-400-2AP4-10-R1

Product Lifecycle:Active

Get a quick Quote!

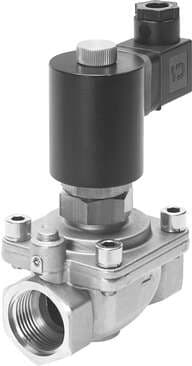

solenoid valve VZWF-L-M22C-G114-400-2AP4-10-R1 force pilot operated, G11/4" connection. Design structure: (* Diaphragm valve, * forced), Type of actuation: electrical, Sealing principle: soft, Assembly position: Magnet standing, Mounting type: Line instal

About the manufacturer: Festo is one of the manufacturers that offers Process & Media Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1492219 Festo price in the box on the right side or send a quick quote.

Product Details

Sealing principle
Soft
Valve function
2/2, closed, monostable
Permissible voltage fluctuations
+/- 10 %
Temperature of medium
-10 °C ... 80 °C
Material of screws
High-alloy stainless steel
Product weight
4500 g
Electrical connection
Form A Rectangular design
Medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Other flow media on request
Nominal pressure of fitting PN
40
Max. viscosity
22 mm²/s
On switching time
620 ms
Seals material
NBR
Degree of protection
IP65
Actuation type
Electrical
Mounting position
Magnet, upright
Type of mounting
Line installation
Differential pressure
0 bar
Medium pressure
0 bar ... 10 bar
Ambient temperature
-10 °C ... 35 °C
Standard nominal flow rate
21370 l/min

Housing material

Cast stainless steel

CE marking (see declaration of conformity)

as per EU pressure equipment directive As per EU low voltage directive

Type code

VZWF

Nominal width

40 mm

Flow direction

Non-reversible

Symbol

00992976

Flow rate Kv

20 m³/h

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Corrosion resistance class (CRC)

3 - High corrosion stress

Design

Diaphragm valve Force pilot operated

Fitting connection

G1 1/4

Manual override

None

Coil characteristics

110 V AC: 50/60 Hz, initial power 30.0 VA, holding power 30.0 VA

Leak rate to EN 12266-1

Switching time off

1140 ms

Material number of housing

1.4581

Material number of screw

1.4301

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
