1492184 Festo Process & Media Valves
Part#:1492184
Alt. Part#:VZWF-B-L-M22C-N12-135-E-1P4-10-R1
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

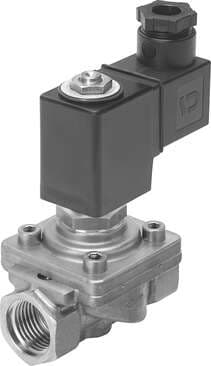

solenoid valve VZWF-B-L-M22C-N12-135-E-1P4-10-R1 force pilot operated, NPT1/2" connection. Design structure: (* Diaphragm valve, * forced), Type of actuation: electrical, Sealing principle: soft, Assembly position: Magnet standing, Mounting type: Line ins
Product Details
- Design Diaphragm valve Force pilot operated
- Medium Compressed air as per ISO 8573-1:2010 [7:-:-] Other flow media on request
- Nominal pressure of fitting PN 40
- Permissible voltage fluctuations +/- 10 %
- Flow rate Kv 2.5 m³/h
- Switching time off 180 ms
- Material number of screw 1.4301
- Sealing principle Soft
- Type of mounting Line installation
- Flow direction Non-reversible
- Symbol 00992976
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Material of screws High-alloy stainless steel
- Type code VZWF
- Mounting position Magnet, upright
- Valve function 2/2, closed, monostable
- Differential pressure 0 bar
- Max. viscosity 22 mm²/s
- Leak rate to EN 12266-1 A
- Housing material Cast stainless steel
- Degree of protection IP65
- Actuation type Electrical
- Electrical connection Form A Rectangular design
- Manual override None
- Coil characteristics 24 V DC: 11.0 W
- Temperature of medium -10 °C ... 80 °C
- On switching time 130 ms
- Material number of housing 1.4581
- Product weight 1000 g
- Fitting connection 1/2 NPT
- Nominal width 13.5 mm
- Medium pressure 0 bar ... 10 bar
- Ambient temperature -10 °C ... 35 °C
- Standard nominal flow rate 2660 l/min
- Seals material EPDM
- Corrosion resistance class (CRC) 3 - High corrosion stress
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
