1492154 Festo Process & Media Valves

Name: 1492154
Brand: Festo

Part#:1492154

Manufacturer:Festo

Alt. Part#:VZWF-B-L-M22C-G1-275-V-1P4-6-R1

Product Lifecycle:Active

Get a quick Quote!

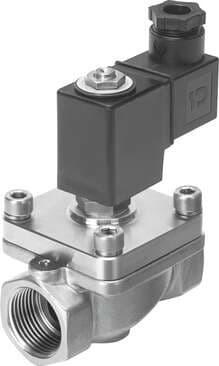

solenoid valve VZWF-B-L-M22C-G1-275-V-1P4-6-R1 force pilot operated, G1" connection. Design structure: (* Diaphragm valve, * forced), Type of actuation: electrical, Sealing principle: soft, Assembly position: Magnet standing, Mounting type: Line installat

About the manufacturer: Festo is one of the manufacturers that offers Process & Media Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1492154 Festo price in the box on the right side or send a quick quote.

Product Details

Type code
VZWF
Mounting position
Magnet, upright
Nominal width
27.5 mm
Nominal pressure of fitting PN
40
Leak rate to EN 12266-1
A
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Corrosion resistance class (CRC)
3 - High corrosion stress
Type of mounting
Line installation
Medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Other flow media on request
Differential pressure
0 bar
Symbol
00992976
Standard nominal flow rate
11750 l/min
On switching time
275 ms
Product weight
1500 g
Design
Diaphragm valve Force pilot operated
Electrical connection
Form A Rectangular design
Manual override
None
Coil characteristics
24 V DC: 11.0 W
Temperature of medium
-10 °C ... 80 °C
Flow rate Kv
11 m³/h

Material number of screw

1.4301

Sealing principle

Soft

Valve function

2/2, closed, monostable

Permissible voltage fluctuations

+/- 10 %

Max. viscosity

22 mm²/s

Switching time off

290 ms

Housing material

Cast stainless steel

Seals material

FPM

Actuation type

Electrical

Fitting connection

Flow direction

Non-reversible

Medium pressure

0 bar ... 6 bar

Ambient temperature

-10 °C ... 35 °C

Material number of housing

1.4581

Material of screws

High-alloy stainless steel

Degree of protection

IP65

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
