1492125 Festo Process & Media Valves
Part#:1492125
Alt. Part#:VZWF-L-M22C-G2-500-1P4-6-R1
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

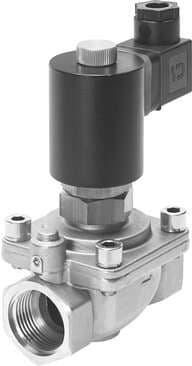

solenoid valve VZWF-L-M22C-G2-500-1P4-6-R1 force pilot operated, G2" connection. Design structure: (* Diaphragm valve, * forced), Type of actuation: electrical, Sealing principle: soft, Assembly position: Magnet standing, Mounting type: Line installation
Product Details
- Design Diaphragm valve Force pilot operated
- Mounting position Magnet, upright
- Electrical connection Form A Rectangular design
- Differential pressure 0 bar
- Temperature of medium -10 °C ... 80 °C
- Flow rate Kv 28 m³/h
- Material of screws High-alloy stainless steel
- CE marking (see declaration of conformity) as per EU pressure equipment directive
- Sealing principle Soft
- Valve function 2/2, closed, monostable
- Flow direction Non-reversible
- Symbol 00992976
- Leak rate to EN 12266-1 A
- Switching time off 2140 ms
- Material number of housing 1.4581
- Corrosion resistance class (CRC) 3 - High corrosion stress
- Type of mounting Line installation
- Nominal pressure of fitting PN 40
- Permissible voltage fluctuations +/- 10 %
- Standard nominal flow rate 29900 l/min
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Degree of protection IP65
- Type code VZWF
- Fitting connection G2
- Medium Compressed air as per ISO 8573-1:2010 [7:-:-] Other flow media on request
- Medium pressure 0 bar ... 6 bar
- Max. viscosity 22 mm²/s
- On switching time 1220 ms
- Seals material NBR
- Product weight 6500 g
- Actuation type Electrical
- Nominal width 50 mm
- Manual override None
- Coil characteristics 24 V DC: 30.0 W
- Ambient temperature -10 °C ... 35 °C
- Housing material Cast stainless steel
- Material number of screw 1.4301
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
