1492052 Festo Process & Media Valves

Name: 1492052
Brand: Festo

Part#:1492052

Manufacturer:Festo

Alt. Part#:VZWD-L-M22C-M-N18-30-V-3AP4-15-R1

Product Lifecycle:Active

Get a quick Quote!

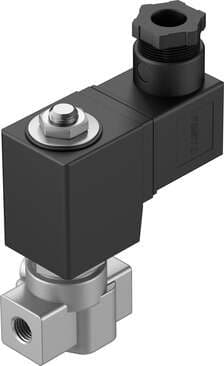

solenoid valve VZWD-L-M22C-M-N18-30-V-3AP4-15-R1 Directly actuated, NPT1/8" connection. Design structure: Directly actuated poppet valve, Type of actuation: electrical, Sealing principle: soft, Assembly position: Any, Mounting type: Line installation

About the manufacturer: Festo is one of the manufacturers that offers Process & Media Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1492052 Festo price in the box on the right side or send a quick quote.

Product Details

Sealing principle
Soft
Valve function
2/2, closed, monostable
Permissible voltage fluctuations
+/- 10 %
Medium pressure
0 bar ... 15 bar
On switching time
20 ms
Housing material
High-alloy stainless steel
Corrosion resistance class (CRC)
3 - High corrosion stress
Design
Directly controlled poppet valve
Type of mounting
Line installation
Manual override
None
Coil characteristics
230 V AC: 50/60 Hz, initial power 18.0 VA, holding power 15.0 VA
Insulation class
F
Leak rate to EN 12266-1
A
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Degree of protection
IP65
Type code
VZWD
Mounting position
Any
Nominal width
3 mm
Nominal pressure of fitting PN
100
Type of control
Direct

Ambient temperature

-10 °C ... 35 °C

Product weight

500 g

Actuation type

Electrical

Electrical connection

Form A Rectangular design

Flow direction

Non-reversible

Differential pressure

0 bar

Reset method

Mechanical spring

Temperature of medium

-10 °C ... 80 °C

Max. viscosity

22 mm²/s

Seals material

FPM

CE marking (see declaration of conformity)

As per EU low voltage directive

Fitting connection

1/8 NPT

Medium

Compressed air as per ISO 8573-1:2010 [7:4:4] Other flow media on request

Duty cycle

100%

Symbol

00992979

Flow rate Kv

0.2 m³/h

Switching time off

18 ms

Standard nominal flow rate

210 l/min

Material number of housing

1.4305

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
