1491982 Festo Process & Media Valves
Part#:1491982
Alt. Part#:VZWD-L-M22C-M-G18-15-V-3AP4-30
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

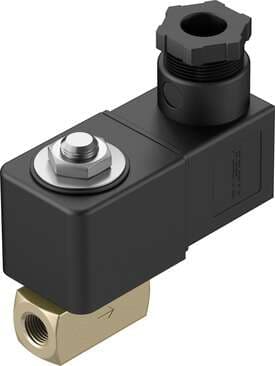

solenoid valve VZWD-L-M22C-M-G18-15-V-3AP4-30 Directly actuated, G1/8" connection. Design structure: Directly actuated poppet valve, Type of actuation: electrical, Sealing principle: soft, Assembly position: Any, Mounting type: Line installation
Product Details
- Type code VZWD
- Sealing principle Soft
- Fitting connection G1/8
- Medium Compressed air as per ISO 8573-1:2010 [7:4:4] Other flow media on request
- Reset method Mechanical spring
- Symbol 00992979
- On switching time 25 ms
- Seals material FPM
- Mounting position Any
- Valve function 2/2, closed, monostable
- Insulation class F
- Leak rate to EN 12266-1 A
- Housing material Brass
- Degree of protection IP65
- Manual override None
- Differential pressure 0 bar
- Type of control Direct
- Ambient temperature -10 °C ... 35 °C
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Actuation type Electrical
- Type of mounting Line installation
- Electrical connection Form A Rectangular design
- Coil characteristics 230 V AC: 50/60 Hz, initial power 10.5 VA, holding power 7.6 VA
- Permissible voltage fluctuations +/- 10 %
- Max. viscosity 22 mm²/s
- Flow rate Kv 0.09 m³/h
- Standard nominal flow rate 95 l/min
- Product weight 300 g
- CE marking (see declaration of conformity) As per EU low voltage directive
- Design Directly controlled poppet valve
- Nominal width 1.5 mm
- Flow direction Non-reversible
- Nominal pressure of fitting PN 50
- Duty cycle 100%
- Medium pressure 0 bar ... 30 bar
- Temperature of medium -10 °C ... 80 °C
- Switching time off 10 ms
- Material number of housing CW614N
- Corrosion resistance class (CRC) 1 - Low corrosion stress
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
