1491902 Festo Process & Media Valves
Part#:1491902
Alt. Part#:VZWD-L-M22C-M-N14-60-V-1P4-4-R1
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

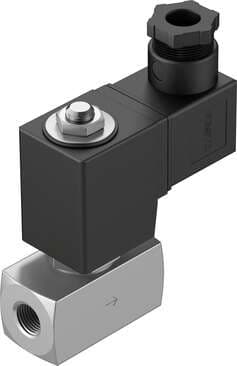

solenoid valve VZWD-L-M22C-M-N14-60-V-1P4-4-R1 Directly actuated, NPT1/4" connection. Design structure: Directly actuated poppet valve, Type of actuation: electrical, Sealing principle: soft, Assembly position: Any, Mounting type: Line installation
Product Details
- Fitting connection 1/4 NPT
- Permissible voltage fluctuations +/- 10 %
- Symbol 00992979
- Medium pressure 0 bar ... 4 bar
- Switching time off 18 ms
- Seals material FPM
- Design Directly controlled poppet valve
- Type of mounting Line installation
- Valve function 2/2, closed, monostable
- Insulation class H
- Type of control Direct
- Leak rate to EN 12266-1 A
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Product weight 650 g
- Sealing principle Soft
- Nominal width 6 mm
- Medium Compressed air as per ISO 8573-1:2010 [7:4:4] Other flow media on request
- Differential pressure 0 bar
- Duty cycle 100%
- Ambient temperature -10 °C ... 35 °C
- On switching time 20 ms
- Material number of housing 1.4305
- Corrosion resistance class (CRC) 3 - High corrosion stress
- Type code VZWD
- Mounting position Any
- Manual override None
- Nominal pressure of fitting PN 100
- Reset method Mechanical spring
- Max. viscosity 22 mm²/s
- Flow rate Kv 0.4 m³/h
- Housing material High-alloy stainless steel
- Actuation type Electrical
- Electrical connection Form A Rectangular design
- Flow direction Non-reversible
- Coil characteristics 24 V DC: 11.0 W
- Temperature of medium -10 °C ... 80 °C
- Standard nominal flow rate 430 l/min
- Degree of protection IP65
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
