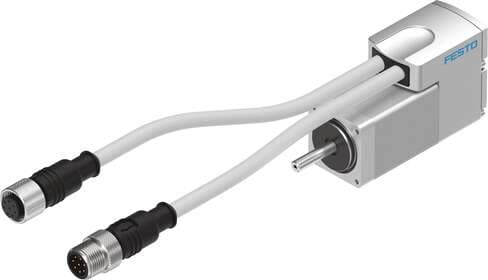

1430663 Festo Stepper Motors

Product Details

• Step angle tolerance
  ±5%
• Rotor position sensor interface
  RS422 TTL A/B channels + zero index
• Motor nominal current
  1.4 A
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Degree of protection
  IP65
• Certification
  RCM compliance mark c UL us - Recognized (OL)
• Rotor mass moment of inertia
  0.018 kgcm²
• Step angle with full step
  1.8 deg
• Max. rotational speed
  6000 1/min
• Phase winding resistance
  2.3 Ohm
• Voltage constant, phase
  6 mVmin
• Relative air humidity
  0 - 85 %
• Motor holding torque
  0.09 Nm
• Permissible radial shaft load
  20 N
• Electrical connection technology
  Plug
• Type code
  EMMS-ST
• Rotor position sensor measuring principle
  Optical
• Nominal operating voltage DC
  48 V
• Corrosion resistance class (CRC)
  1 - Low corrosion stress
• Thermal class according to EN 60034-1
  B
Ambient temperature
-10 °C ... 50 °C
Product weight
320 g
Rating class according to EN 60034-1
S1
Total output inertia moment
0.018 kgcm²
Conforms to standard
IEC 60034
Rotor position sensor
Incremental encoder
Insulation protection class
B
Winding inductance phase
1.4 mH
Storage temperature
-20 °C ... 70 °C
Permissible axial shaft load
7 N
Note on materials
RoHS-compliant
