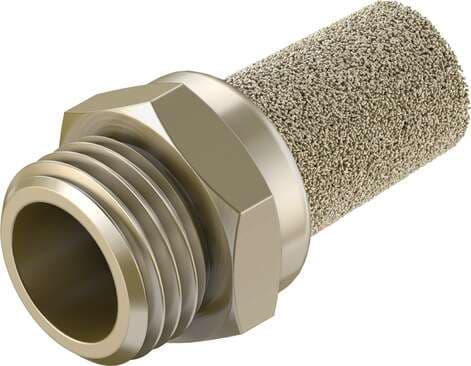

1205861 Festo Pneumatic Mufflers

Name: 1205861
Brand: Festo

Part#:1205861

Manufacturer:Festo

Alt. Part#:AMTE-M-LH-G14

Product Lifecycle:Active

Get a quick Quote!

silencer AMTE-M-LH-G14 Suitable for reducing noise at the exhaust ports of pneumatic systems. Assembly position: Any, Container size: 20, Operating pressure: 0 - 10 bar, Flow rate to atmosphere: 3140 l/min, Operating medium: Compressed air in accordance w

About the manufacturer: Festo is one of the manufacturers that offers Pneumatic Mufflers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1205861 Festo price in the box on the right side or send a quick quote.

Product Details

Pack size
20
Flow rate with respect to atmosphere
3140 l/min
Noise level
83 dB(A)
Pneumatic connection
G1/4
Mounting position
Any
Information on operating and pilot media
Operation with oil lubrication possible
Cushioning insert material
Bronze
Corrosion resistance class (CRC)
1 - Low corrosion stress
Material of screwed trunnion
Brass
Symbol
00991473
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Product weight
13 g
Type code
AMTE
Operating pressure
0 bar ... 10 bar
Ambient temperature
-40 °C ... 80 °C
Note on materials
RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
