1133405 Festo Axial Kits

1133405 on Powermatic Associates
Festo

Part#:1133405

Alt. Part#:EAMM-A-R48-87A

Manufacturer:Festo

Category:Axial Kits

Product Lifecycle:Active

Product description

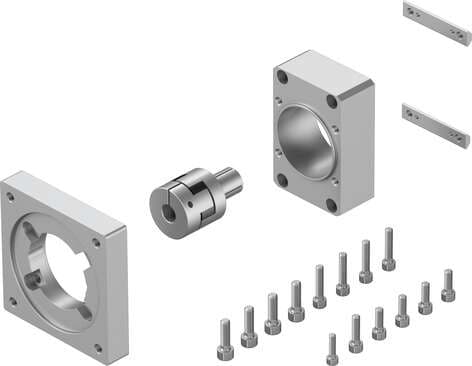

axial kit EAMM-A-R48-87A Suitable for electric drives. Assembly position: Any, Storage temperature: -25 - 60 °C, Relative air humidity: 0 - 95 %, Protection class: IP40, Ambient temperature: -10 - 60 °C

Product Details

  • Relative air humidity
    0 - 95 %
  • Interface code, actuator
    R48
  • Degree of protection
    IP40
  • Interface code, motor in
    87A
  • Mounting position
    Any
  • Transferable torque
    12.5 Nm
  • Type code
    EAMM-A
  • Ambient temperature
    -10 °C ... 60 °C
  • Note on materials
    RoHS-compliant
  • Storage temperature
    -25 °C ... 60 °C
  • Product weight
    590 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1133405 Related Documents

1133405 DataSheet.pdf
