1133404 Festo Axial Kits

1133404 on Powermatic Associates
Festo

Part#:1133404

Alt. Part#:EAMM-A-R38-87A

Manufacturer:Festo

Category:Axial Kits

Product Lifecycle:Active

Product description

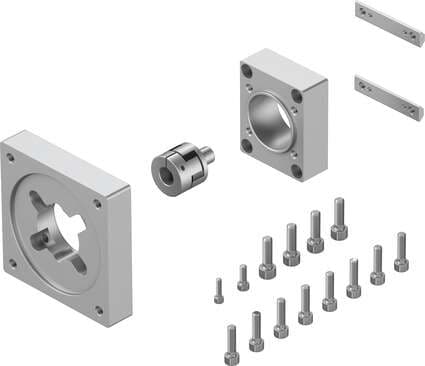

axial kit EAMM-A-R38-87A Suitable for electric drives. Assembly position: Any, Storage temperature: -25 - 60 °C, Relative air humidity: 0 - 95 %, Protection class: IP40, Ambient temperature: -10 - 60 °C

Product Details

  • Storage temperature
    -25 °C ... 60 °C
  • Product weight
    530 g
  • Relative air humidity
    0 - 95 %
  • Note on materials
    RoHS-compliant
  • Mounting position
    Any
  • Type code
    EAMM-A
  • Transferable torque
    4.4 Nm
  • Interface code, actuator
    R38
  • Degree of protection
    IP40
  • Ambient temperature
    -10 °C ... 60 °C
  • Interface code, motor in
    87A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1133404 Related Documents

1133404 DataSheet.pdf
