11305 Festo Pneumatic Valves Accessories

11305 on Powermatic Associates
Festo

Part#:11305

Manufacturer:Festo

Alt. Part#:NAV-3/8-2C-ISO

Product Lifecycle:Active

Get a quick Quote!

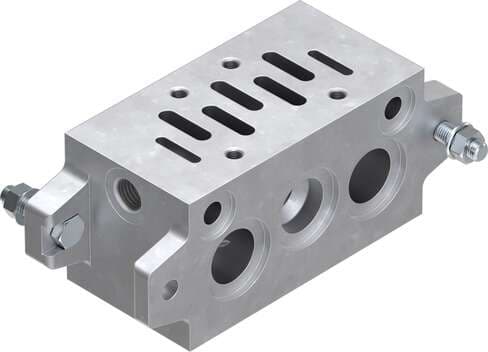

manifold sub-base NAV-3/8-2C-ISO With port pattern as per DIN ISO 5599/1, for manifold assembly, connections underneath. Conforms to standard: ISO 5599-1, Authorisation: UL - Recognized (OL), Product weight: 400 g, Auxiliary pilot air port 12/14: G1/8, Pn

About the manufacturer: Festo is one of the manufacturers that offers Pneumatic Valves Accessories that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 11305 Festo price in the box on the right side or send a quick quote.

Product Details

  • Conforms to standard
    ISO 5599-1
  • Product weight
    400 g
  • Certification
    UL - Recognized (OL)
  • Housing material
    Die-cast aluminum
  • Pneumatic connection 4
    G3/8
  • Type code
    NAV
  • Pilot air port 12/14
    G1/8
  • Designation to VDMA
    VDMA 24345-C-2
  • Pneumatic connection 2
    G3/8

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 11305 Specs

11305 11305 DataSheet.pdf
