Part#:1002561

Manufacturer:Festo

Alt. Part#:VZXF-L-M22C-M-A-N2-450-M1-V4V4T-50-4

Product Lifecycle:Active

Get a quick Quote!

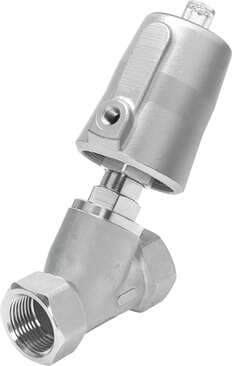

angle seat valve VZXF-L-M22C-M-A-N2-450-M1-V4V4T-50-4 Pneumatically actuated angle seat valve in stainless steel. Over seat version, safety position closed, NPT thread, nominal width 2". Design structure: Poppet valve with piston actuator, Type of actuati

About the manufacturer: Festo is one of the manufacturers that offers Process & Media Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1002561 Festo price in the box on the right side or send a quick quote.

Product Details

  • Type of mounting
    Line installation
  • Medium pressure
    0 bar ... 4 bar
  • Operating pressure
    6 bar ... 10 bar
  • Flow rate Kv
    34.5 m³/h
  • Material number, fitting housing
    1.4408
  • Seat seal material
    PTFE
  • Actuation type
    Pneumatic
  • Cable connection
    Threaded sleeve NPT2 as per ANSI/ASME B 1.20.1
  • Type of control
    Externally controlled
  • Medium
    Vapor Filtered compressed air, 200 µm filter mesh
  • Ambient temperature
    -10 °C ... 60 °C
  • Drive housing material
    High-alloy stainless steel
  • Sealing principle
    Soft
  • Flow direction
    Above valve seat, for gaseous media
  • Pneumatic connection
    Internal thread G1/8
  • Max. viscosity
    600 mm²/s
  • Spindle seal material
    PTFE
  • Corrosion resistance class (CRC)
    3 - High corrosion stress
  • Type code
    VZXF
  • Mounting position
    Any
  • Nominal width
    45 mm
  • Exhaust air function
    Without flow control option
  • Symbol
    00991367
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Temperature of medium
    -40 °C ... 200 °C
  • CE marking (see declaration of conformity)
    as per EU pressure equipment directive
  • Design
    Poppet valve with piston actuator
  • Valve function
    2/2, closed, monostable
  • Nominal pressure of fitting PN
    40
  • Reset method
    Mechanical spring
  • Valve housing material
    Cast stainless steel
  • Product weight
    3500 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
