1002559 Festo Process & Media Valves

Name: 1002559
Brand: Festo

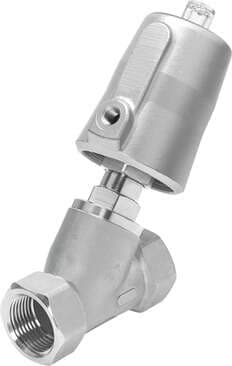

Festo 1002559 angle seat valve VZXF-L-M22C-M-A-N112-350-M1-V4V4T-80-16 Pneumatically actuated angle seat valve in stainless steel. Over seat version, safety position closed, NPT thread, nominal width 1 1/2". Design structure: Poppet valve with piston actuator, Type of

Part#:1002559

Manufacturer:Festo

Alt. Part#:VZXF-L-M22C-M-A-N112-350-M1-V4V4T-80-16

Product Lifecycle:Active

Get a quick Quote!

angle seat valve VZXF-L-M22C-M-A-N112-350-M1-V4V4T-80-16 Pneumatically actuated angle seat valve in stainless steel. Over seat version, safety position closed, NPT thread, nominal width 1 1/2". Design structure: Poppet valve with piston actuator, Type of

About the manufacturer: Festo is one of the manufacturers that offers Process & Media Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1002559 Festo price in the box on the right side or send a quick quote.

Product Details

Design
Poppet valve with piston actuator
Type of mounting
Line installation
Valve function
2/2, closed, monostable
Nominal pressure of fitting PN
40
Pneumatic connection
Internal thread G1/8
Medium
Vapor Filtered compressed air, 200 µm filter mesh
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Seat seal material
PTFE
Mounting position
Any
Reset method
Mechanical spring
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Flow rate Kv
29 m³/h
Corrosion resistance class (CRC)
3 - High corrosion stress
Cable connection
Threaded sleeve NPT1 1/2 as per ANSI/ASME B 1.20.1
Symbol
00991367
Valve housing material
Cast stainless steel
Material number, fitting housing
1.4408
Actuation type
Pneumatic
Flow direction
Above valve seat, for gaseous media
Exhaust air function
Without flow control option

Operating pressure

6 bar ... 10 bar

Max. viscosity

600 mm²/s

Spindle seal material

PTFE

CE marking (see declaration of conformity)

as per EU pressure equipment directive

Type code

VZXF

Sealing principle

Soft

Nominal width

35 mm

Medium pressure

0 bar ... 16 bar

Type of control

Externally controlled

Temperature of medium

-40 °C ... 200 °C

Ambient temperature

-10 °C ... 60 °C

Product weight

4300 g

Drive housing material

High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
