1002549 Festo Process & Media Valves
Part#:1002549
Alt. Part#:VZXF-L-M22C-M-A-N1-240-M1-V4V4T-50-16
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

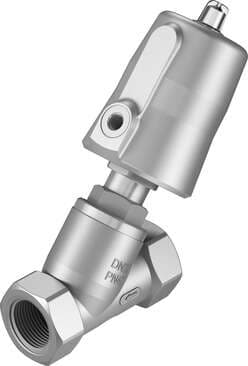

angle seat valve VZXF-L-M22C-M-A-N1-240-M1-V4V4T-50-16 Pneumatically actuated angle seat valve in stainless steel. Over seat version, safety position closed, NPT thread, nominal width 1". Design structure: Poppet valve with piston actuator, Type of actuat
Product Details
- Type code VZXF
- Mounting position Any
- Flow direction Above valve seat, for gaseous media
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Product weight 1600 g
- Nominal width 24 mm
- Exhaust air function Without flow control option
- Operating pressure 6 bar ... 10 bar
- Max. viscosity 600 mm²/s
- Valve housing material Cast stainless steel
- Drive housing material High-alloy stainless steel
- Design Poppet valve with piston actuator
- Valve function 2/2, closed, monostable
- Reset method Mechanical spring
- Symbol 00991367
- Flow rate Kv 12 m³/h
- Spindle seal material PTFE
- Actuation type Pneumatic
- Cable connection Threaded sleeve NPT1 as per ANSI/ASME B 1.20.1
- Nominal pressure of fitting PN 40
- Pneumatic connection Internal thread G1/8
- Medium Vapor Filtered compressed air, 200 µm filter mesh
- Ambient temperature -10 °C ... 60 °C
- Material number, fitting housing 1.4408
- Corrosion resistance class (CRC) 3 - High corrosion stress
- Sealing principle Soft
- Type of mounting Line installation
- Medium pressure 0 bar ... 16 bar
- Type of control Externally controlled
- Temperature of medium -40 °C ... 200 °C
- Seat seal material PTFE
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
