1002500 Festo Process & Media Valves

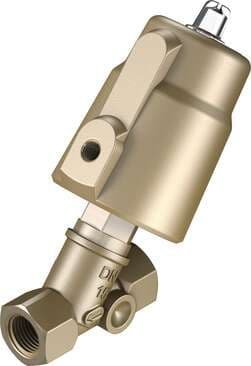

Festo 1002500 angle seat valve VZXF-L-M22C-M-A-G12-120-H3B1-50-16 Pneumatically actuated angle seat valve in red brass. Over seat version, safety position closed, G thread, nominal width 1/2". Design structure: Poppet valve with piston actuator, Type of actuation: pneu
Festo

Part#:1002500

Manufacturer:Festo

Alt. Part#:VZXF-L-M22C-M-A-G12-120-H3B1-50-16

Product Lifecycle:Active

Get a quick Quote!

angle seat valve VZXF-L-M22C-M-A-G12-120-H3B1-50-16 Pneumatically actuated angle seat valve in red brass. Over seat version, safety position closed, G thread, nominal width 1/2". Design structure: Poppet valve with piston actuator, Type of actuation: pneu

About the manufacturer: Festo is one of the manufacturers that offers Process & Media Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1002500 Festo price in the box on the right side or send a quick quote.

Product Details

  • Actuation type
    Pneumatic
  • Flow direction
    Above valve seat, for gaseous media
  • Exhaust air function
    Without flow control option
  • Medium
    Vapor Filtered compressed air, 200 µm filter mesh
  • Nominal width
    12 mm
  • Type of control
    Externally controlled
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Spindle seal material
    NBR
  • Product weight
    1200 g
  • Design
    Poppet valve with piston actuator
  • Cable connection
    Threaded sleeve G1/2 as per DIN ISO 228
  • Medium pressure
    0 bar ... 16 bar
  • Operating pressure
    6 bar ... 10 bar
  • Symbol
    00991367
  • Flow rate Kv
    3.5 m³/h
  • Drive housing material
    Brass
  • Type code
    VZXF
  • Mounting position
    Any
  • Type of mounting
    Line installation
  • Nominal pressure of fitting PN
    16
  • Pneumatic connection
    Internal thread G1/8
  • Max. viscosity
    600 mm²/s
  • Temperature of medium
    -10 °C ... 80 °C
  • Seat seal material
    PTFE
  • Sealing principle
    Soft
  • Valve function
    2/2, closed, monostable
  • Reset method
    Mechanical spring
  • Ambient temperature
    -10 °C ... 60 °C
  • Material number, fitting housing
    CC499K
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Valve housing material
    Red brass
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
