N48D28B4916CUI3 Eaton Industrial Automation Components

N48D28B4916CUI3 on Powermatic Associates
Eaton

Part#:N48D28B4916CUI3

Manufacturer:Eaton

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

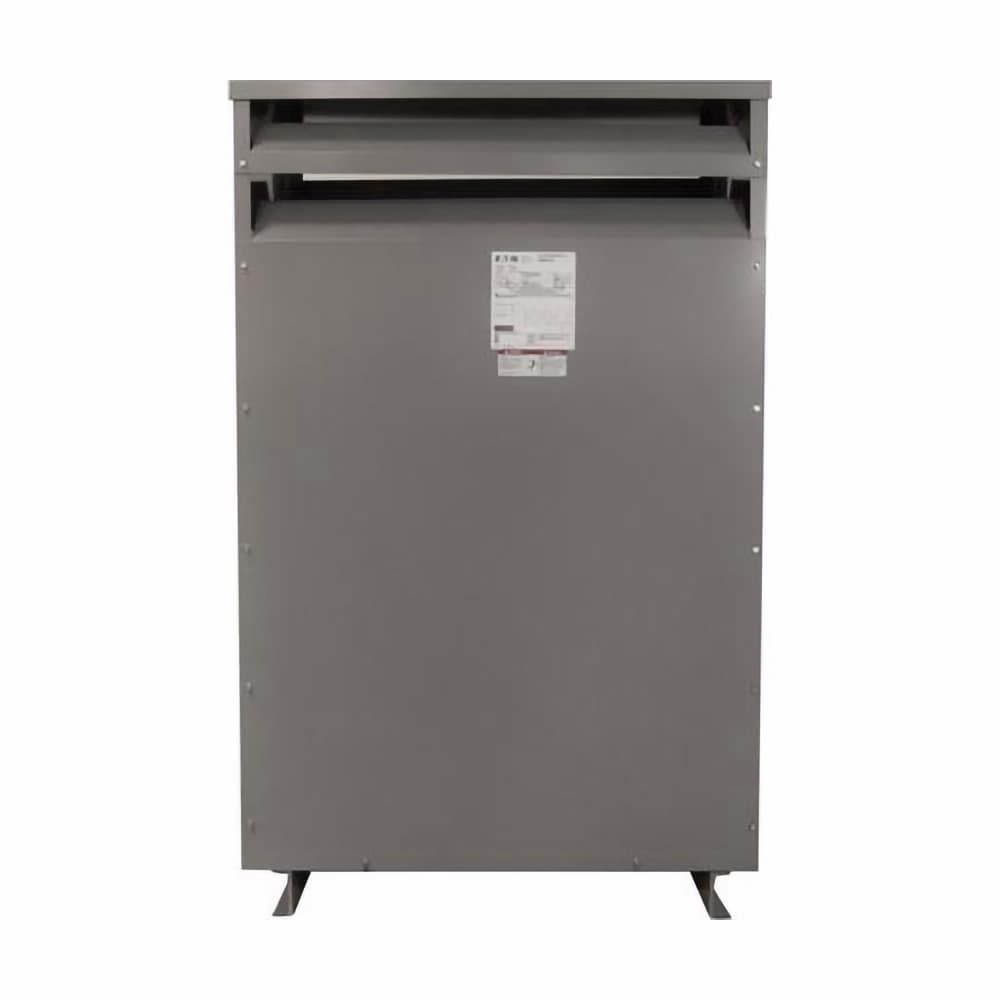

N48D28B4916CUI3 Eaton - Eaton K-Factor nonlinear ventilated transformer, Copper windings, NEMA 2, FR944W, 60 Hz, 220C, 150 kVA, Three-Phase, 480 to 208Y/120, 80C rise, Shielded, DOE 2016, WS61, 305K, K13, 3-in IR window

Product Details

  • Weight
    2135 pounds
  • Primary Voltage
    480 volts
  • Mounting Type
    Floor
  • Number of Phases
    3
  • Length
    33.5 inches
  • Height
    60 inches
  • Coil Material
    Copper
  • Temperature rise
    80 °C rise
  • Volt ampere rating
    150 kVA
  • Coil material
    Copper
  • Frequency rating
    60 Hz
  • Efficiency
    10 CFR Part 431-2016 (DOE 2016)
  • Mounting
    Floor
  • Type
    Energy-efficient Ventilated Transformer
  • Secondary Voltage
    120 volts
  • Wiring connection
    305K
  • Kva Rating
    150 kVA
  • Enclosure
    2
  • Primary voltage
    480 V
  • Modification 1
    Electrostatic shield, 3 in IR window
  • Frame
    944 watts
  • Sound Level
    NEMA ST-20
  • Weathershield
    WS61
  • Phase
    Three-phase
  • Tap size
    2 at +2.5%, 2 at -2.5%
  • Insulation
    220 °C
  • Special features
    K-factor 13
  • Catalog Notes
    10 CFR Part 431 (2016) Efficient
  • UPC
    786680245596
  • Certifications
    UL Listed
  • Product Height
    60 in
  • Product Weight
    2135 lb
  • Compliances
    DOE2016 Efficient
  • Product Length/Depth
    33.5 in
  • Product Name
    Eaton K-Factor nonlinear ventilated transformer
  • Product Width
    38 in
  • Catalog Number
    N48D28B4916CUI3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
