WLS28PXRGBW1130DXQ Banner Light Bars

Name: WLS28PXRGBW1130DXQ
Brand: Banner
Price: 751 USD
Availability: BackOrder

WLS28PXRGBW1130DXQ on Powermatic Associates

Part#:WLS28PXRGBW1130DXQ

Manufacturer:Banner

Alt. Part#:810992

Product Lifecycle:Active

Get a quick Quote!

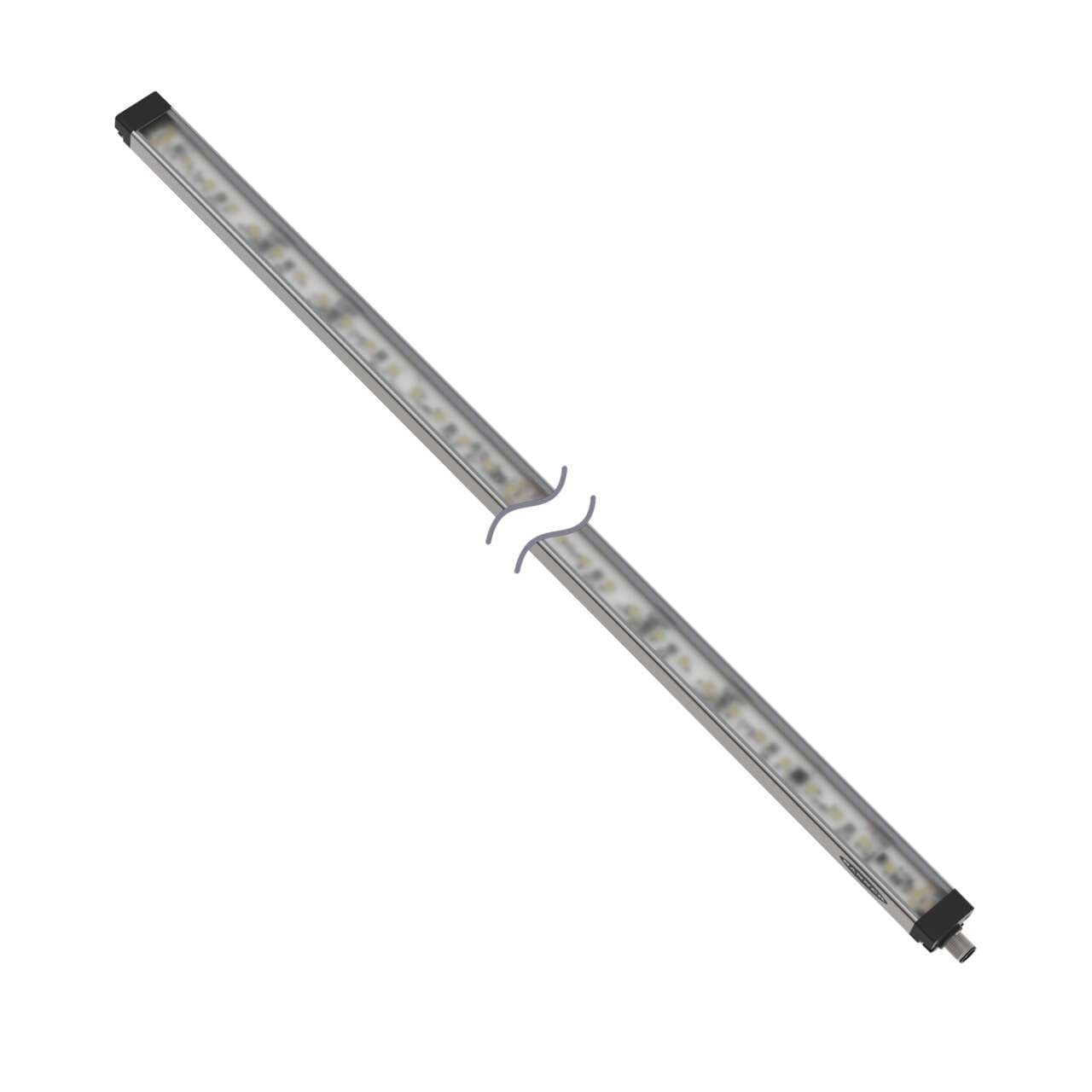

WLS28 Pro Light Strip; Diffuse Window; Length: 1130 mm; Voltage: 18-30 V dc; Environmental Rating: IP50; Color: RGBW; Non-Cascadable; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS28PXRGBW1130DXQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
1043.2616 g
Country Of Origin
MX
USB
No
Feature: Chemical Resistant
No
Multi-Color Device
Simultaneous Colors On
Indication Intensity
High Brightness & Daylight Visible
Feature: Audible
No
Min Op. Temperature (°C)
-40
Environmental Rating
IP50
Number of Input Pins/Conductors
4
Max Input Response Time (ms)
300
Supply Voltage
18-30 V dc
I/O Block Compatible
Yes
Animation Option 1
See Configuration File
Quick Disconnect Type
M12 (Euro)
Number of Colors / Segments
19
Product Size (mm)
28
Color Option 1
RGBW
Primary Housing Material
Aluminum
Power
DC

Pro-Editor Compatible (Discrete)

Yes

Modbus RTU

IO Link

Wireless

Feature: Hazardous Area

Max Op. Temperature (°C)

Physical Dimensions (LxWxH or DxH mm)

1173.0 x 28.0 x 20.9

Primary Window Material

Polycarbonate Diffused

Storage Temp (°C)

-40 to 70

Illuminated Length (LxWxH mm)

1130

Wire Selectable Function

Programmable

Dimming Option

Programmable

Max Current Color (mA)

2200

Number of Tower Light Segments

Programmable

Color Technology

RGB Configurable

Connection

Integral QD

Illumination

Yes

Color Input Control

Multiple (One or more wires/color, enables more colors than input wires)

Mounting Thread

No Thread

Indication

Yes

Housing Style

Linear Strip

PFM Input

Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS28PXRGBW1130DXQ Description

Banner Engineering WLS28PXRGBW1130DXQ is a task light designed as an LED industrial strip light/bar featuring a diffused window for 7-color multicolor LED illumination. It operates on a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this product are L1130mm x W28mm, constructed with a polycarbonate (PC) window and a clear anodized aluminum housing. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector, adopting a linear light strip shape. This part offers a degree of protection rated at IP50 and can be mounted on surfaces or walls. It is designed to operate within an ambient air temperature range of -40°C to +50°C and includes 3 digital inputs (18-30Vdc) for color control.

$751.00

Request a quote, and we will send availability within minutes.

Select Qty:

$751.00

$751.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
