WLS28-2XW850XPBQ Banner Light Bars

Name: WLS28-2XW850XPBQ
Brand: Banner

Banner WLS28-2XW850XPBQ WLS28-2 Work Light Strip; Switched; Length: 850 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; 4-pin M12 Integral QD

Part#:WLS28-2XW850XPBQ

Manufacturer:Banner

Alt. Part#:87999

Product Lifecycle:Active

Get a quick Quote!

WLS28-2 Work Light Strip; Switched; Length: 850 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS28-2XW850XPBQ Banner price in the box on the right side or send a quick quote.

Product Details

Weight
816.4656 g
Country Of Origin
MX
Pro-Editor Compatible (Discrete)
No
Feature: Chemical Resistant
No
Wireless
No
IO Link
No
Modbus RTU
No
Feature: Hazardous Area
No
Feature: Audible
No
Primary Window Material
Polycarbonate Clear
Illumination Switch Function
I=Low; O=OFF; II=High
Max Op. Temperature (°C)
70
Environmental Rating
IP50
Storage Temp (°C)
-40 to 70
Min Op. Temperature (°C)
-40
Physical Dimensions (LxWxH or DxH mm)
921.0 x 28.0 x 25.0
Illuminated Length (LxWxH mm)
850.0
Supply Voltage
12-30 V dc
Number of Input Pins/Conductors
4
Animation Option 1
Solid On

Dimming Option

High-Low-Off

Lumens Color 1

2400

Color 1 - Wavelength/Color Temp/Coordinates

6500K (Cool)

Connection

Integral QD

Quick Disconnect Type

M12 (Euro)

Color Option 1

White

Color Technology

Standard LED

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Power Source

Power

Illumination

Yes

Housing Style

Linear Strip

Product Size (mm)

Mounting Thread

No Thread

Number of Colors / Segments

Primary Housing Material

Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS28-2XW850XPBQ Description

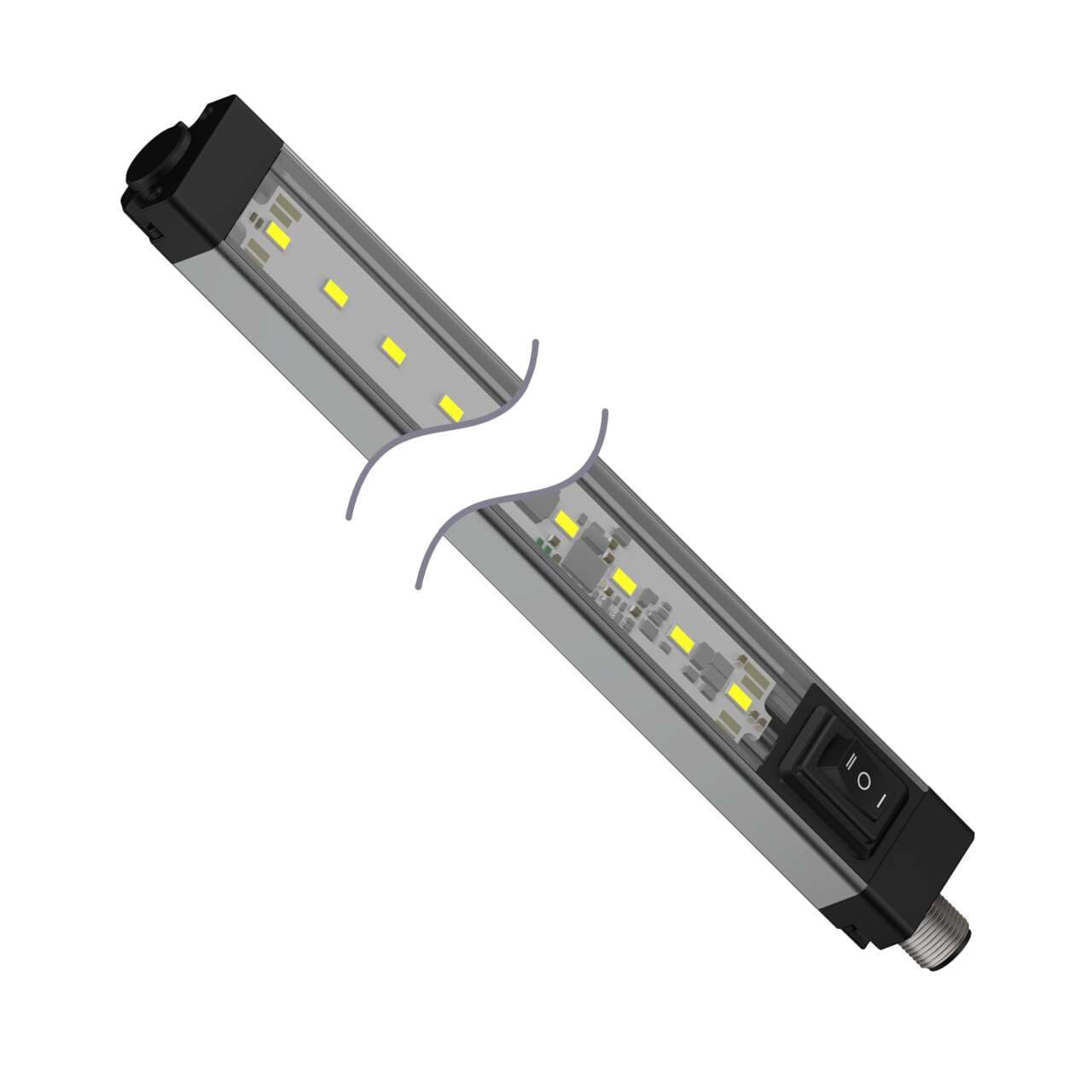

Banner Engineering WLS28-2XW850XPBQ is a LED industrial task strip light/bar designed for various lighting tasks. It features a high/low/off switch with a clear plastic window for 1-color Cool White (W) LED illumination. The supply voltage ranges from 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. This product measures 850mm in length and 28mm in width. The window is made of polycarbonate (PC), and it has an anodized aluminum housing for durability. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector, making installation straightforward. The linear light strip has an IP50 degree of protection, suitable for surface or wall mounting. It can operate in ambient air temperatures ranging from -40°C to +70°C. Additionally, it includes 1 x digital input (12-30Vdc) for color control and offers a luminous flux of 2400 lm (lumens).
