WLS28-2XW570S Banner Light Bars

Name: WLS28-2XW570S
Brand: Banner
Price: 352 USD
Availability: BackOrder

Part#:WLS28-2XW570S

Manufacturer:Banner

Alt. Part#:88037

Product Lifecycle:Active

Get a quick Quote!

WLS28-2 Work Light Strip; Length: 570 mm; Voltage: 12-30 V dc; Environmental Rating: IP67/IP69K; Color: White; 2 m (6.5 ft) Integral Cable

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS28-2XW570S Banner price in the box on the right side or send a quick quote.

Product Details

Weight
566.99 g
Country Of Origin
MX
Modbus RTU
No
IO Link
No
Pro-Editor Compatible (Discrete)
No
Wireless
No
Feature: Chemical Resistant
No
Feature: Washdown Rated
Yes
Environmental Rating
IP65; IP67; IP69
Feature: Audible
No
Feature: Hazardous Area
No
Min Op. Temperature (°C)
-40
Primary Window Material
Polycarbonate Clear
Storage Temp (°C)
-40 to 70
Max Op. Temperature (°C)
70
Physical Dimensions (LxWxH or DxH mm)
605.5 x 28.0 x 20.9
Supply Voltage
12-30 V dc
Illuminated Length (LxWxH mm)
570.0
Animation Option 1
Solid On
Number of Input Pins/Conductors
3

Dimming Option

High-Low-Off

Lumens Color 1

1600

Color 1 - Wavelength/Color Temp/Coordinates

6500K (Cool)

Connection

Cable

Color Option 1

White

Color Technology

Standard LED

Mounting Thread

No Thread

Number of Colors / Segments

Product Size (mm)

Illumination

Yes

Power Source

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Housing Style

Linear Strip

Primary Housing Material

Aluminum

Power

Cable Length (m)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS28-2XW570S Description

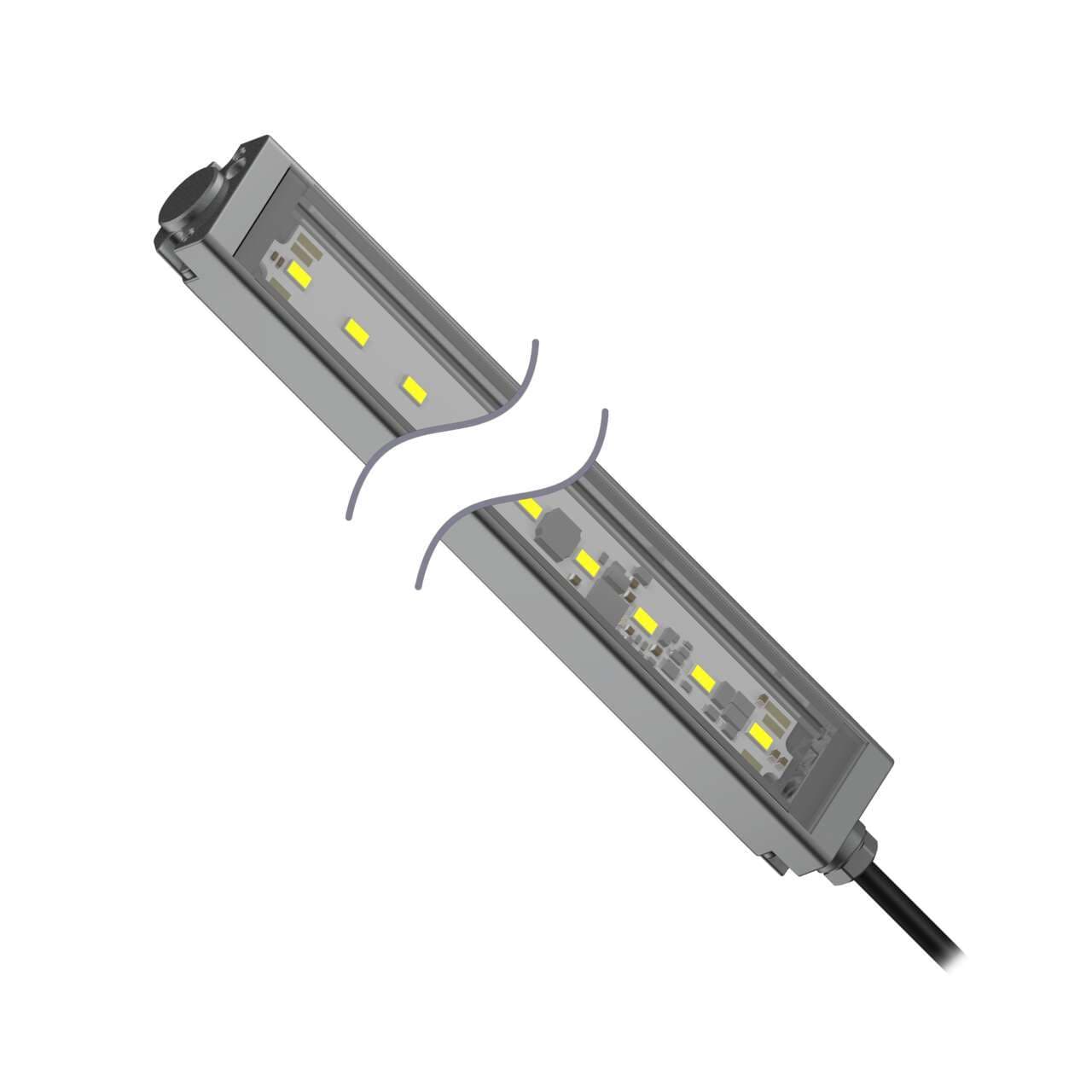

Banner Engineering WLS28-2XW570S is a sealed LED industrial strip light designed for task lighting applications. It features a clear plastic window with 1-color Cool White (W) LED illumination, operating on a supply voltage range of 12Vdc-30Vdc (24Vdc nominal). The dimensions of this product are L570mm x W28mm, constructed with a polycarbonate (PC) window and an anodized aluminum housing. It comes pre-wired with a 2m / 6.5ft 3-wire cable terminated with bare end flying leads, offering a linear light strip shape. This model boasts a degree of protection rated at IP65, IP67, and IP69K, suitable for surface or wall mounting. It can operate in ambient air temperatures ranging from -40°C to +70°C and includes 1 x digital input (12-30Vdc) for color control. The luminous flux provided by this task light is 1600 lm (lumens).
