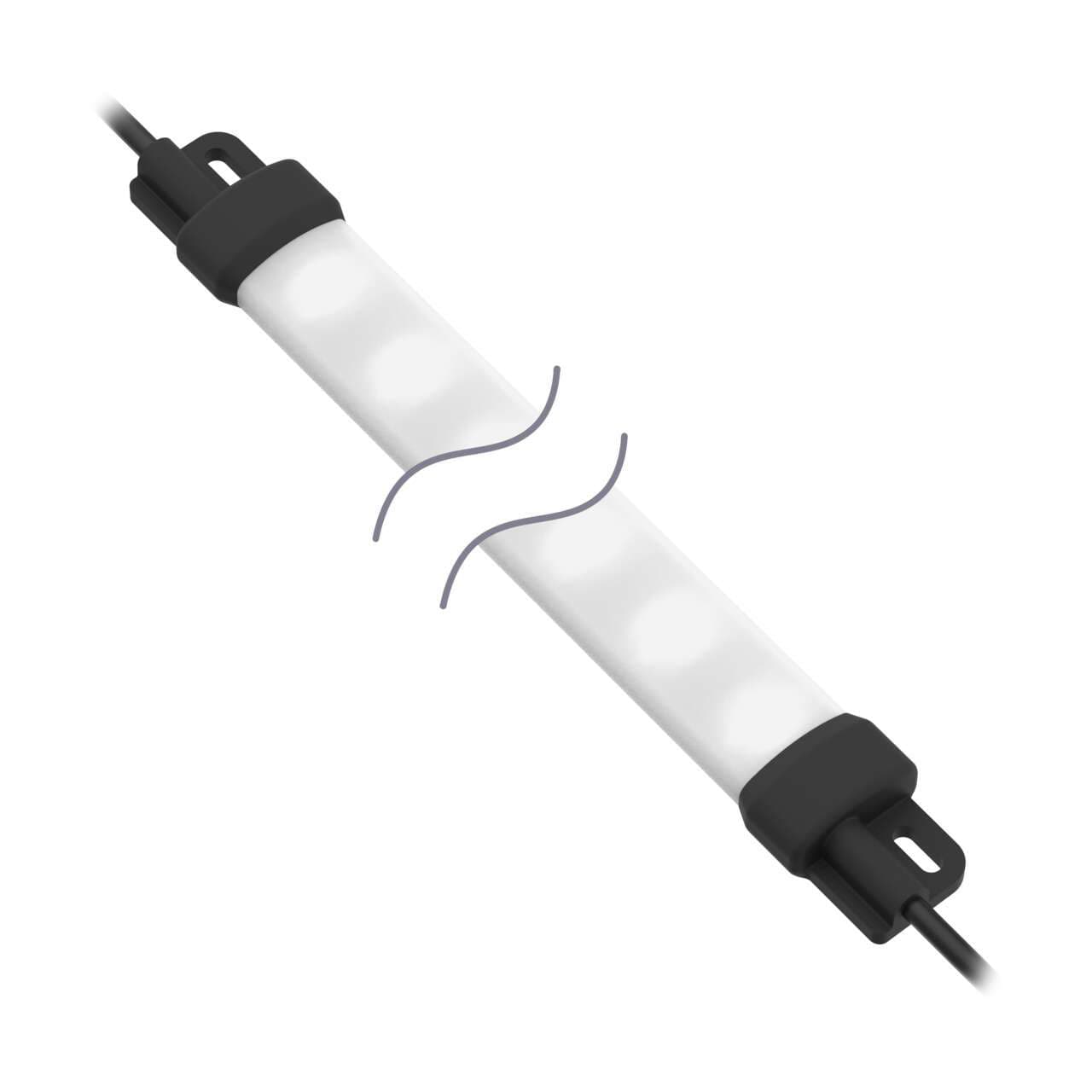

WLS15CWR0640DSQP Banner Pick-to-Light Sensors

Name: WLS15CWR0640DSQP
Brand: Banner
Price: 225 USD
Availability: BackOrder

WLS15CWR0640DSQP on Powermatic Associates

Part#:WLS15CWR0640DSQP

Manufacturer:Banner

Alt. Part#:806963

Product Lifecycle:Active

Get a quick Quote!

WLS15 Dual Color Light Strip; Length: 640 mm; Voltage: 12 or 24 V dc; Environmental Rating: IP66,67; Colors: White Red; Cascadable; 150 mm (6 in) 4-pin M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS15CWR0640DSQP Banner price in the box on the right side or send a quick quote.

Product Details

Weight
204.1164 g
Country Of Origin
MX
Min Op. Temperature (°C)
-40
Feature: Hazardous Area
No
Pro-Editor Compatible (Discrete)
No
Modbus RTU
No
Wireless
No
IO Link
No
Multi-Color Device
Single Color On
Feature: Audible
No
Feature: Chemical Resistant
No
Feature: Cascade
Yes
Secondary Material
Polyamide
Primary Window Material
Polycarbonate Diffused
Storage Temp (°C)
-40 to 70
Feature: Quick Disconnect
Yes
Max Op. Temperature (°C)
60
Illuminated Length (LxWxH mm)
566.4
Environmental Rating
IP66; IP67
Physical Dimensions (LxWxH or DxH mm)
640.0 x 30.6 x 15.5

Supply Voltage

12/24 V dc

Number of Input Pins/Conductors

Color 2 - Wavelength/Color Temp/Coordinates

625 nm

Max Current Color (mA)

960

Lumens Color 2

220

Color Option 2

Red

Color 1 - Wavelength/Color Temp/Coordinates

5000K (Daylight)

Quick Disconnect Type

M12 (Euro)

Lumens Color 1

700

Connection

Pigtail QD

Color Option 1

White

Color Technology

Standard LED

Product Size (mm)

Number of Colors / Segments

Illumination

Yes

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Housing Style

Linear Strip

Mounting Thread

No Thread

Indication

Yes

Power Source

Primary Housing Material

Polycarbonate

Power

Cable Length (m)

0.15

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS15CWR0640DSQP Description

Banner Engineering WLS15CWR0640DSQP is a task light designed as a cascadable sealed industrial low power LED light strip/bar. It features a diffused window with a 2-color white/red (W/R) color pattern LED illumination. This product operates on a supply voltage of either 12Vdc or 24Vdc and has dimensions of L640mm x W15mm. The material used for both the diffused window and the base is Polycarbonate (PC), ensuring durability. It is pre-wired with a 6" / 15cm pigtail that terminates with a 4-pin M12 Euro-style quick disconnect (QD) connector. The linear light strip shape is designed to fit a variety of applications. It offers a degree of protection rated at IP66 and IP67, making it suitable for use in environments with temperatures ranging from -40°C to +60°C. The WLS15CWR0640DSQP includes 2 digital inputs (12Vdc / 24Vdc) for color control, consumes 960mA of current, and provides a luminous flux of 700 lumens.
