WLB32ZC570MQMB Banner Light Bars

WLB32ZC570MQMB on Powermatic Associates
Banner

Part#:WLB32ZC570MQMB

Manufacturer:Banner

Alt. Part#:800348

Product Lifecycle:Active

Get a quick Quote!

WLB32 Work Light Bar; Motion Sensor; Length: 570 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; QD - Includes Type B Power Cord; Diffuse window

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLB32ZC570MQMB Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    884.5044 g
  • Country Of Origin
    MX
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • Feature: Cascade
    Yes
  • Modbus RTU
    No
  • Feature: Audible
    No
  • Storage Temp (°C)
    -40 to 70
  • Feature: Hazardous Area
    No
  • Illumination Switch Function
    Motion Activated
  • Min Op. Temperature (°C)
    -25
  • Primary Window Material
    Polycarbonate Diffused
  • Max Op. Temperature (°C)
    45
  • Environmental Rating
    IP50
  • Physical Dimensions (LxWxH or DxH mm)
    650.0 x 32.0 x 50.1
  • Illuminated Length (LxWxH mm)
    570.0
  • Supply Voltage
    90-264 V ac
  • Number of Input Pins/Conductors
    3
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Lumens Color 1
    1500
  • Connection
    Integral QD
  • Animation Option 1
    Solid On
  • Color Technology
    Standard LED
  • Color Option 1
    White
  • Housing Style
    Linear Strip
  • Primary Housing Material
    Aluminum
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Colors / Segments
    1
  • Product Size (mm)
    32
  • Mounting Thread
    No Thread
  • Power
    AC
  • Illumination
    Yes
  • Power Source
    AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLB32ZC570MQMB Description

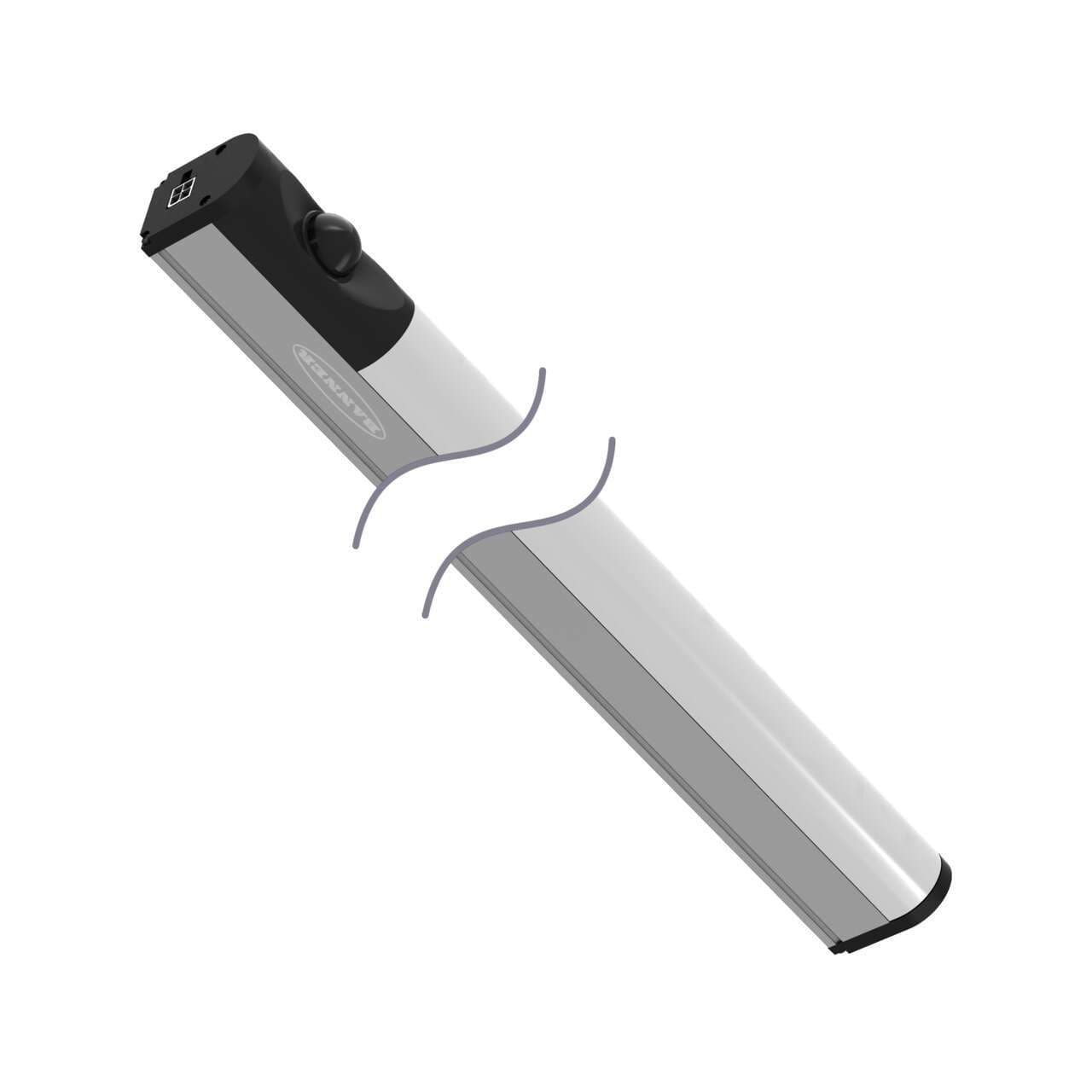

Banner Engineering WLB32ZC570MQMB is a cascadable industrial LED workstation light bar designed for task lighting. It features motion sensing and is equipped with a Type B power cord for 1-color Daylight White (DW) LED illumination. The light operates on a supply voltage ranging from 90Vac to 264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac inputs. This model measures 570mm in length and 32mm in width, with a polycarbonate (PC) diffused window and an aluminium housing. It comes pre-wired with a 1.8m / 5.9ft power cord terminated with a plug compatible in North & Central America, Japan, and Taiwan. The linear lighting shape of this product is designed with a degree of protection rated IP50, making it suitable for operation in ambient air temperatures ranging from -25°C to +45°C. It includes 1 x digital input (100-240Vac) for color control, consumes 250mA of current, and provides a luminous flux of 1500 lumens.

Related documents WLB32ZC570MQMB Specs

WLB32ZC570MQMB 176314.pdf

Manufacturer warranty
