WLB32ZC285EMQM Banner Light Bars

WLB32ZC285EMQM on Powermatic Associates
Banner

Part#:WLB32ZC285EMQM

Manufacturer:Banner

Alt. Part#:97844

Product Lifecycle:Active

Get a quick Quote!

WLB32 Work Light Bar; Motion Sensor; Length: 285 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; Eye Shield; QD - No Power cord; Diffuse window

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLB32ZC285EMQM Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    504.9839736 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Physical Dimensions (LxWxH or DxH mm)
    368.0 x 38.3 x 50.1
  • Modbus RTU
    No
  • Wireless
    No
  • IO Link
    No
  • Feature: Cascade
    Yes
  • Feature: Chemical Resistant
    No
  • Illumination Switch Function
    Motion Activated
  • Primary Window Material
    Polycarbonate Diffused
  • Illuminated Length (LxWxH mm)
    285.0
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Storage Temp (°C)
    -40 to 70
  • Environmental Rating
    IP50
  • Eye Shield
    Yes
  • Max Op. Temperature (°C)
    45
  • Min Op. Temperature (°C)
    -25
  • Supply Voltage
    90-264 V ac
  • Max Current Color (mA)
    125
  • Number of Input Pins/Conductors
    3
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Animation Option 1
    Solid On
  • Connection
    Integral QD
  • Lumens Color 1
    750
  • Color Option 1
    White
  • Color Technology
    Standard LED
  • Product Size (mm)
    32
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Colors / Segments
    1
  • Mounting Thread
    No Thread
  • Housing Style
    Linear Strip
  • Power Source
    AC
  • Power
    AC
  • Illumination
    Yes
  • Primary Housing Material
    Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLB32ZC285EMQM Description

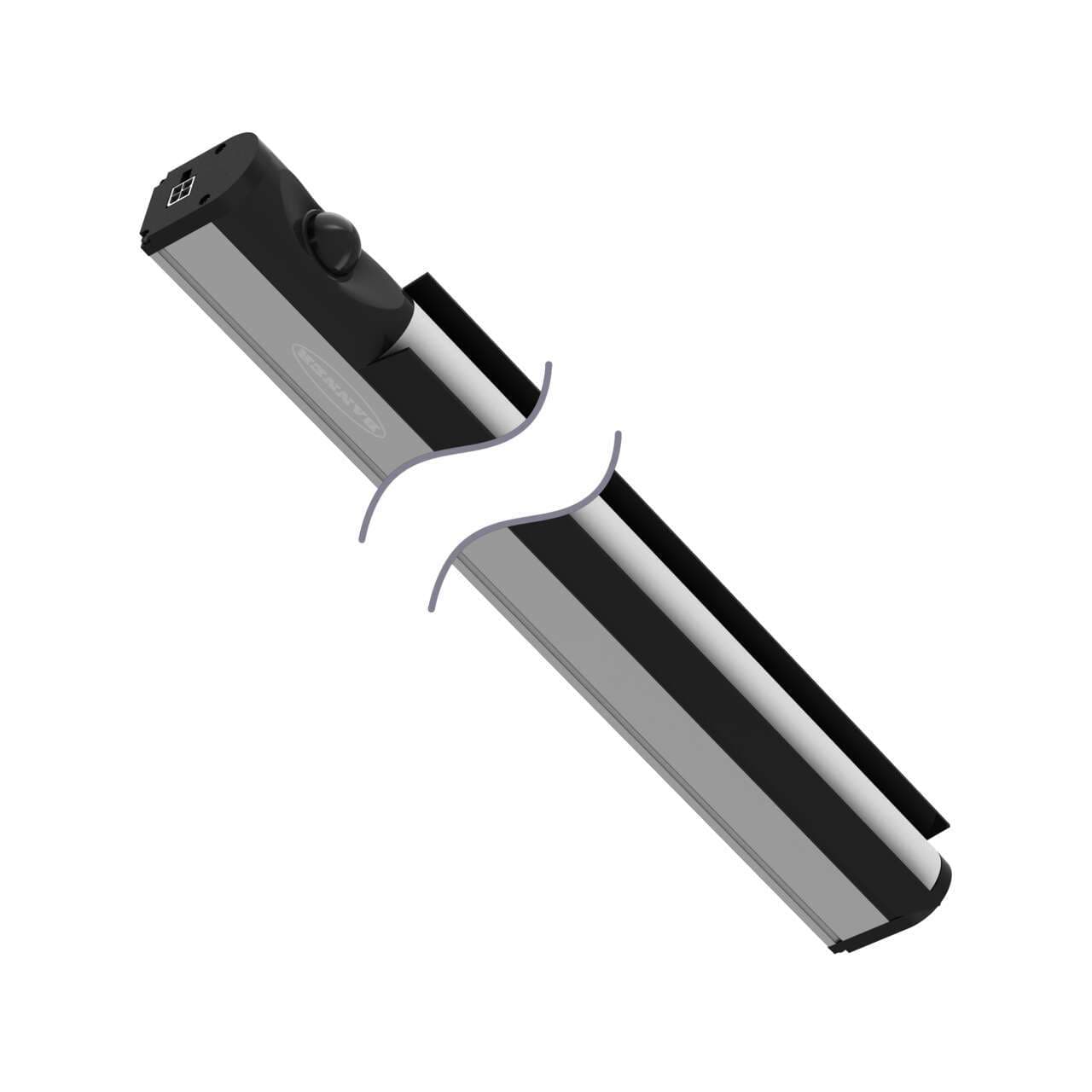

Banner Engineering WLB32ZC285EMQM is a cascadable industrial LED workstation light bar designed with a motion sensing eye shield for 1-color Daylight White (DW) LED illumination. It operates on a supply voltage range of 90Vac-264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac systems. The dimensions of this task light are L285mm x W32mm, featuring a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-equipped with a plug-in connector for easy installation and is designed in a linear lighting shape. The WLB32ZC285EMQM offers a degree of protection rated at IP50 and can operate in ambient air temperatures ranging from -25°C to +45°C. It includes 1 x digital input (100-240Vac) for color control, consumes 125mA of current, and provides a luminous flux of 750 lm (lumens).

Related documents WLB32ZC285EMQM Specs

WLB32ZC285EMQM 176314.pdf
