WLB32C570MQ Banner Light Bars

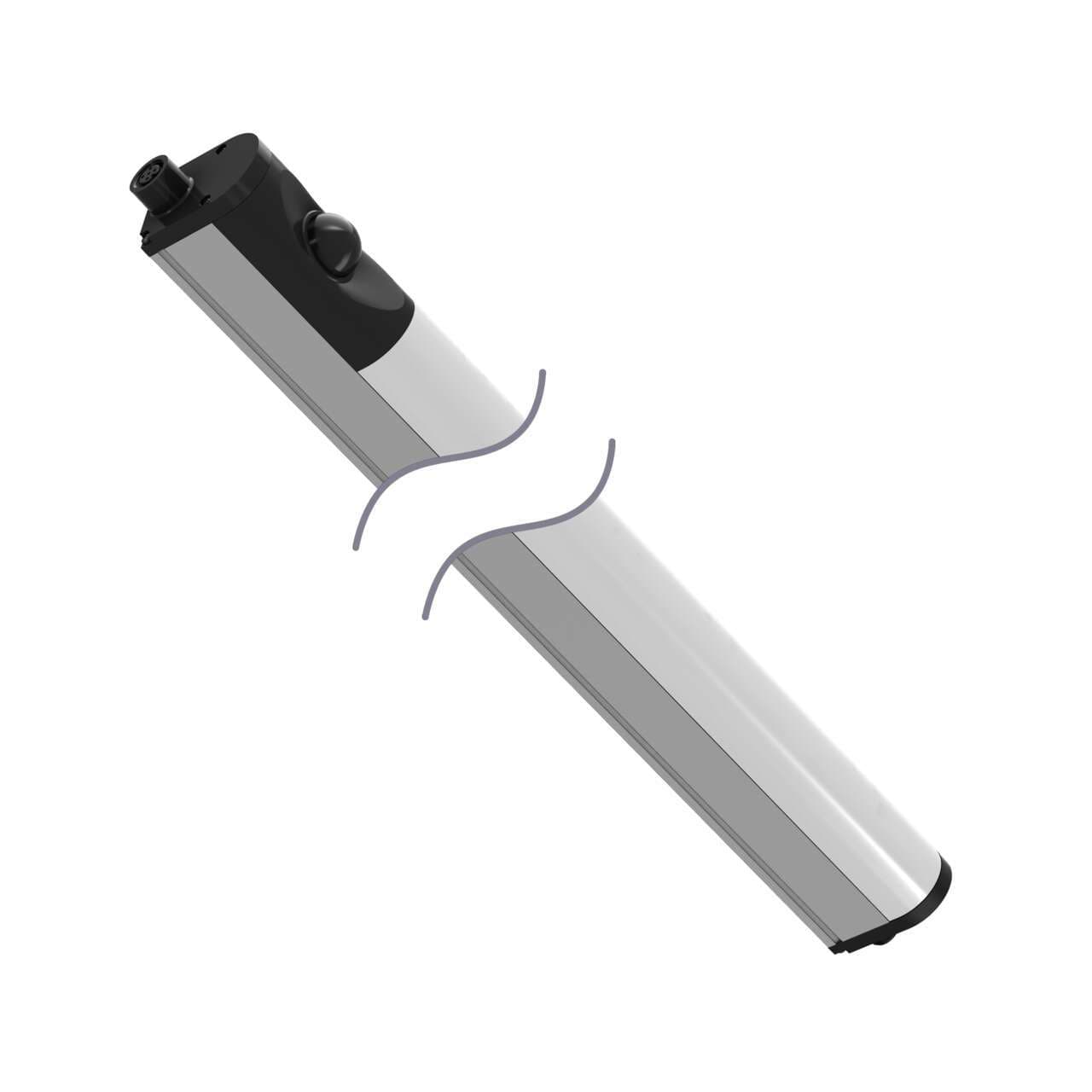

Banner WLB32C570MQ WLB32 Work Light Bar; Motion Sensor; Length: 570 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; Cascadable; 4-pin M12 Integral QD; Diffuse Window
Banner

Part#:WLB32C570MQ

Manufacturer:Banner

Alt. Part#:97314

Product Lifecycle:Active

Get a quick Quote!

WLB32 Work Light Bar; Motion Sensor; Length: 570 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; Cascadable; 4-pin M12 Integral QD; Diffuse Window

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLB32C570MQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    527.073904 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • Wireless
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • Feature: Cascade
    Yes
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Storage Temp (°C)
    -40 to 70
  • Primary Window Material
    Polycarbonate Diffused
  • Illumination Switch Function
    Motion Activated
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    70
  • Environmental Rating
    IP50
  • Physical Dimensions (LxWxH or DxH mm)
    672.0 x 31.9 x 50.2
  • Number of Input Pins/Conductors
    4
  • Supply Voltage
    12-30 V dc
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Animation Option 1
    Solid On
  • Quick Disconnect Type
    M12 (Euro)
  • Illuminated Length (LxWxH mm)
    570.0
  • Color Option 1
    White
  • Lumens Color 1
    1500
  • Connection
    Integral QD
  • Color Technology
    Standard LED
  • Mounting Thread
    No Thread
  • Product Size (mm)
    32
  • Housing Style
    Linear Strip
  • Power
    DC
  • Power Source
    DC
  • Number of Colors / Segments
    1
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Aluminum
  • Illumination
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLB32C570MQ Description

Banner Engineering WLB32C570MQ is a cascadable industrial LED workstation light bar designed for task lighting. It features motion sensing and provides 1-color Daylight White (DW) LED illumination. The light operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. It measures L570mm x W32mm and is constructed with a polycarbonate (PC) diffused window and an aluminium housing. This product is equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy connection. The linear lighting shape of the WLB32C570MQ offers a degree of protection rated at IP50 and can operate in ambient air temperatures ranging from -40°C to +70°C. It includes 1 x digital input (12Vdc / 24Vdc) for color control and has a current consumption of 1.6A. The luminous flux provided by this task light is 1500 lm (lumens).

Related documents WLB32C570MQ Specs

WLB32C570MQ 176313.pdf
