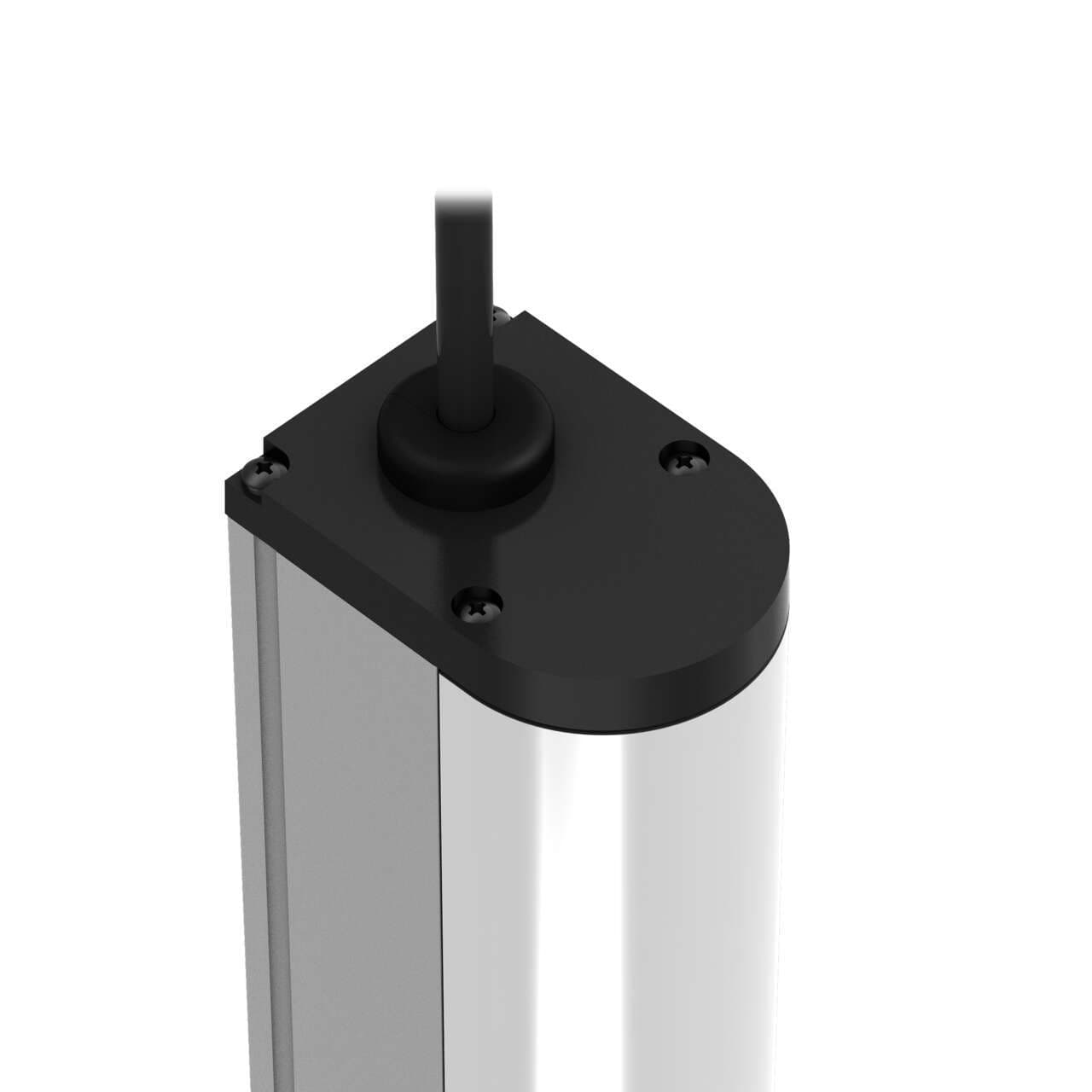

WLB32C570M Banner Light Bars

Banner WLB32C570M WLB32 Work Light Bar; Motion Sensor; Length: 570 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; Cascadable; 2 m (6.5 ft) Integral Cable; Diffuse window
Banner

Part#:WLB32C570M

Manufacturer:Banner

Alt. Part#:97318

Product Lifecycle:Active

Get a quick Quote!

WLB32 Work Light Bar; Motion Sensor; Length: 570 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; Cascadable; 2 m (6.5 ft) Integral Cable; Diffuse window

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLB32C570M Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    536.145744 g
  • Country Of Origin
    MX
  • IO Link
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Feature: Audible
    No
  • Modbus RTU
    No
  • Feature: Cascade
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -40
  • Illumination Switch Function
    Motion Activated
  • Max Op. Temperature (°C)
    70
  • Environmental Rating
    IP50
  • Physical Dimensions (LxWxH or DxH mm)
    665.0 x 31.9 x 50.2
  • Illuminated Length (LxWxH mm)
    570.0
  • Supply Voltage
    12-30 V dc
  • Number of Input Pins/Conductors
    3
  • Connection
    Cable
  • Lumens Color 1
    1500
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Animation Option 1
    Solid On
  • Product Size (mm)
    32
  • Color Technology
    Standard LED
  • Color Option 1
    White
  • Housing Style
    Linear Strip
  • Primary Housing Material
    Aluminum
  • Number of Colors / Segments
    1
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    No Thread
  • Illumination
    Yes
  • Power Source
    DC
  • Power
    DC
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLB32C570M Description

Banner Engineering WLB32C570M is a cascadable industrial LED workstation light bar designed for task lighting. It features motion sensing and provides 1-color Daylight White (DW) LED illumination. This unit operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of the light bar are L570mm x W32mm, and it is constructed with a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-wired with a 2m / 6.5ft 3-wire cable terminated with bare end flying leads for easy installation. The linear lighting shape of the WLB32C570M is designed to fit a variety of spaces. It has a degree of protection rated at IP50 and can operate in ambient air temperatures ranging from -40°C to +70°C. The light bar includes 1 x digital input (12Vdc / 24Vdc) for color control and has a current consumption of 1.6A. It delivers a luminous flux of 1500 lm (lumens), providing bright and effective lighting for workstations.

Related documents WLB32C570M Specs

WLB32C570M 176313.pdf
