T30UXUA
Banner
Product Lifecycle: Active
Banner Engineering T30UXUA is an ultrasonic distance sensor/transmitter belonging to the T30UX series. It features a time-of-flight system with an extended temperature range and compensation TEACH mode. The sensor is housed in thermoplastic and comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. Designed for threaded mount installation, the T30UXUA can operate in ambient air temperatures ranging from -40 to +70°C. It is rated with a degree of protection IP67 NEMA 6, making it suitable for challenging environments. The sensor has an M30 cylindrical threaded/barrel shape, with a sensing distance of 10cm to 1m and utilizes a 224kHz transmission frequency. It includes protection functions against short-circuit and features 1 x analog output (0-10Vdc) for connectivity. The thread size for mounting is M30.

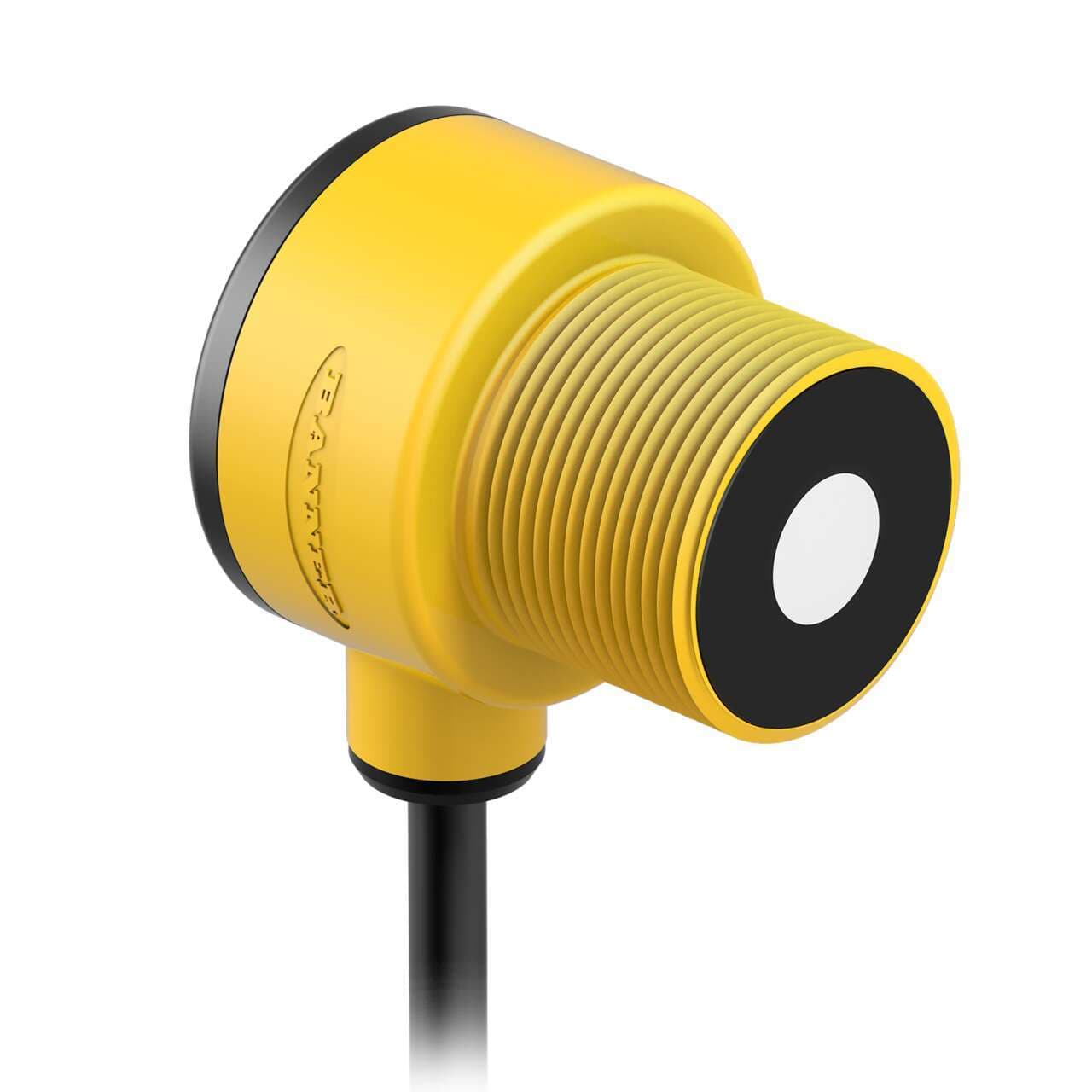

![T30UXUA](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Fcafc2966-4dbf-466a-b92e-2dfb351d4944.jpeg&w=3840&q=75)
Banner Engineering T30UXUA is an ultrasonic distance sensor/transmitter belonging to the T30UX series. It features a time-of-flight system with an extended temperature range and compensation TEACH mode. The sensor is housed in thermoplastic and comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal. Designed for threaded mount installation, the T30UXUA can operate in ambient air temperatures ranging from -40 to +70°C. It is rated with a degree of protection IP67 NEMA 6, making it suitable for challenging environments. The sensor has an M30 cylindrical threaded/barrel shape, with a sensing distance of 10cm to 1m and utilizes a 224kHz transmission frequency. It includes protection functions against short-circuit and features 1 x analog output (0-10Vdc) for connectivity. The thread size for mounting is M30.
- ProfibusNo
- WirelessNo
- SSINo
- IO LinkNo
- Feature: Clear Object DetectionYes
- 1-wire Serial InterfaceNo
- RS-485No
- RS-422No
- PROFINETNo
- RS-232No
- Common Ethernet ProtocolNo
- Application: UltrasonicYes
- Feature: Chemical ResistantNo
- Feature: Timing (Hold/Delay)No
- Max Off-state Leakage Current (µA)NPN: < 200 at 30 V dc; PNP: < 10 at 30 V dc
- Ultrasonic Frequency (kHz)224
- Minimum Window Size (mm)10
- Remote Teach and Laser Control Input Impedence55 kΩ
- Feature: Remote TeachYes
- Supply Protection CircuitryProtected against reverse polarity and transient overvoltages
- Power/Current Consumption (exclusive of load)40 mA
- Barrel Diameter (mm)30
- Analog Linearity (mm)0.25% of distance
- Rep Rate (ms)15
- Minimum Response Time (ms)45
- Temperature Warm-up Drift upon Power-up< 1% of the sensing distance upon power-up
- Max Op. Relative Humidity Non-Condensing (%)95 at 50°C
- Min Operating Temperature (°C)-40
- Max Operating Temperature (°C)70
- NEMA RatingNEMA 6
- IP RatingIP67
- Output ProtectionProtected against short circuit conditions
- Max Discrete (Switched) Output (mA)100
- Analog Voltage Output Rating2.5 kΩ min. load impedance
- Output Saturation Voltage PNP Outputs< 3 V at 100 mA
- Output Saturation Voltage NPN Outputs< 1.6 V at 100 mA
- Mechanical ShockIEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- VibrationMIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Number of Pins4
- AdjustmentsTeach Button
- Delay at Power-up (ms)500
- Temperature Effect (mm/°C)0.02% of sensing distance/°C
- Max Sensing Distance (mm)1000
- Power Supply12-30 V dc
- Analog Resolution/Discrete Repeatability0.1% of distance (0.5 min)
- Minimum Sensing Distance (mm)100
- Quick Disconnect TypeNo QD
- ConnectionFlying Leads
- IndicatorLED(s)
- Analog Output Configuration0-10 V dc
- Input/OutputAnalog
- Primary Housing MaterialPBT
- Device TypeSensor
- Housing StyleBarrel
- Sensing Mode (Detailed)Time of Flight
- PC ConfigurableNo
- Sensing Mode (General)Proximity
- PowerDC
- Cable Length (m)2
- Max Measurement Range>500 mm - <=1000 mm
- Sensing BeamUltrasonic
- Sub-range nameT30UX series
- Product series / family nameU-GAGE series
- Connection typePre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Main functionSensor (Distance)
- Designtime-of-flight system extended temp. range (w/ compensation)
- Thread sizeM30
- Degree of protectionIP67 NEMA 6
- Emission frequency224kHz
- Primary brandBanner Engineering
- Supply voltage (DC)12Vdc-30Vdc (24Vdc nom.)
- Mounting modeThreaded mount
- ShapeCylindrical smooth
- Protection functionsShort-circuit
- FunctionsUltrasonic distance sensor/transmitter green LED (power ON) yellow LED (discrete output / mode) red LED (signal) TEACH mode
- Sensing distance10cm...1m
- Materialthermoplastic housing
- Compliant with standard(s)CE cULus Listed
- Analog outputs1 x analog output (0-10Vdc)
- Order code / Manufacturer SKU80463
- Ambient air temperature for operation-40...+70 °C
