T30UUPBQ
Banner
Product Lifecycle: Active
Banner Engineering T30UUPBQ is an ultrasonic sensor belonging to the T30U analog and discrete output series, designed with a time-of-flight system and TEACH mode for setup. This long-range ultrasonic distance sensor/transmitter features a thermoplastic housing and is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. It operates on a supply voltage of 15Vdc-24Vdc and can be mounted using a threaded mount. The sensor is suitable for operation in ambient air temperatures ranging from -20 to +70°C and offers a degree of protection rated at IP67 NEMA 6P. Its shape is an M30 cylindrical threaded/barrel, and it includes 1 x digital output (PNP transistor) and 1 x analog output (0-10Vdc), with a sensing distance of 30cm to 2m. The sensor operates at a frequency of 128kHz and includes protection functions against overload and short-circuit. The thread size for mounting is M30.

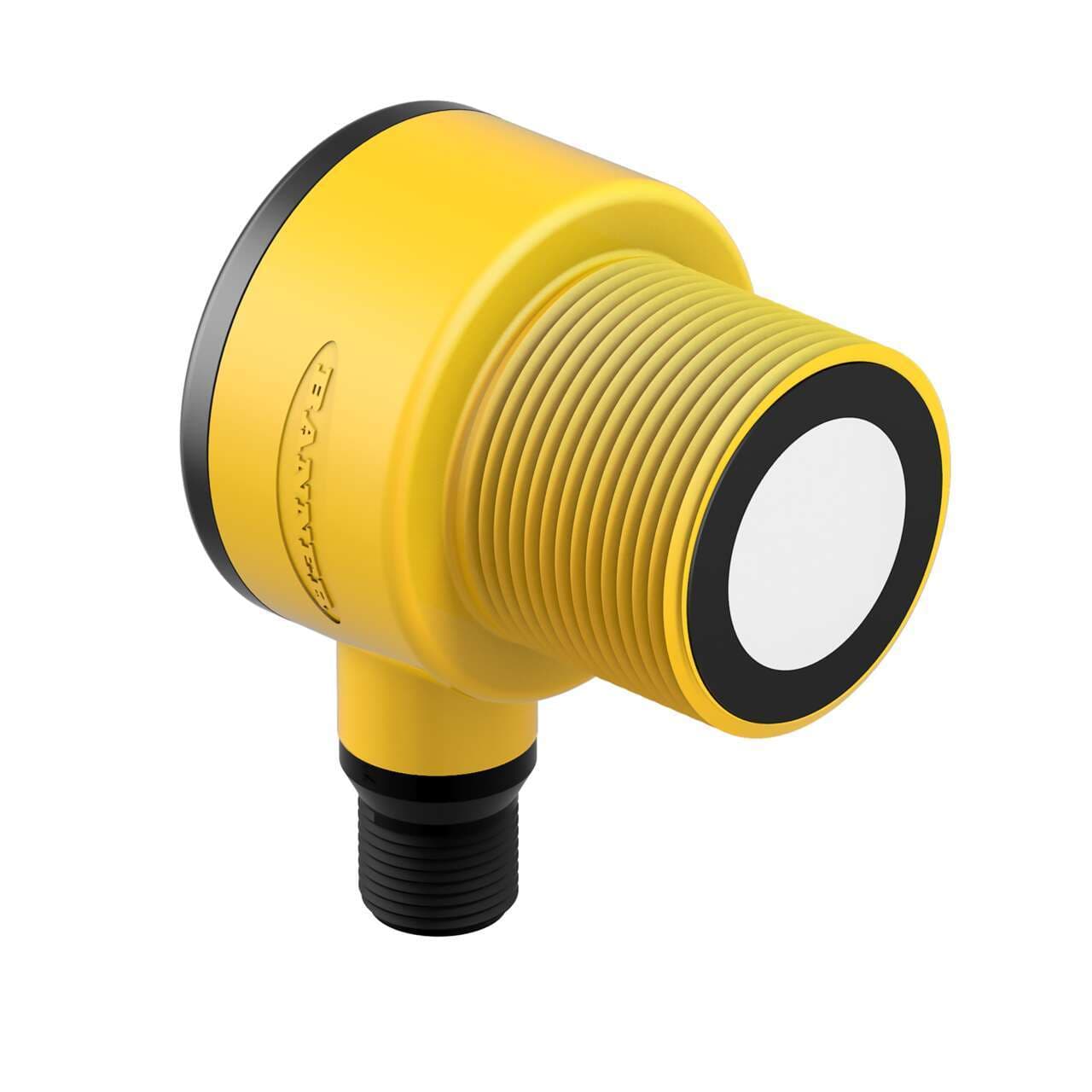

![T30UUPBQ](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Fe31beddd-8d99-498b-b87a-29092474f37e.jpeg&w=3840&q=75)
Banner Engineering T30UUPBQ is an ultrasonic sensor belonging to the T30U analog and discrete output series, designed with a time-of-flight system and TEACH mode for setup. This long-range ultrasonic distance sensor/transmitter features a thermoplastic housing and is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. It operates on a supply voltage of 15Vdc-24Vdc and can be mounted using a threaded mount. The sensor is suitable for operation in ambient air temperatures ranging from -20 to +70°C and offers a degree of protection rated at IP67 NEMA 6P. Its shape is an M30 cylindrical threaded/barrel, and it includes 1 x digital output (PNP transistor) and 1 x analog output (0-10Vdc), with a sensing distance of 30cm to 2m. The sensor operates at a frequency of 128kHz and includes protection functions against overload and short-circuit. The thread size for mounting is M30.
Product details
- ProfibusNo
- 1-wire Serial InterfaceNo
- IO LinkNo
- RS-485No
- Feature: Timing (Hold/Delay)No
- Common Ethernet ProtocolNo
- Feature: Clear Object DetectionYes
- Discrete Output Hysteresis (mm)2.5
- WirelessNo
- SSINo
- RS-422No
- RS-232No
- PROFINETNo
- Application: UltrasonicYes
- Feature: Chemical ResistantNo
- Feature: Remote TeachYes
- Supply Protection CircuitryProtected against reverse polarity and transient overvoltages
- Power/Current Consumption (exclusive of load)90 mA
- Max Off-state Leakage Current (µA)10
- Ultrasonic Frequency (kHz)128
- Remote Teach and Laser Control Input Impedence55 kΩ
- Minimum Window Size (mm)10
- Barrel Diameter (mm)30
- Analog Linearity (mm)+/- 0.5% of full-scale span
- Minimum Response Time (ms)96
- Warm-up Time (minutes)15
- Max Op. Relative Humidity Non-Condensing (%)100
- Min Operating Temperature (°C)-20
- Max Operating Temperature (°C)70
- NEMA RatingNEMA 6P
- IP RatingIP67
- Output ProtectionProtected against false pulse on power-up and continuous overload or short-circuit of outputs
- Output Saturation Voltage PNP Outputs< 1.0 V at 10 mA ; < 1.5 V at 100 mA
- Discrete (Switched) Outputs1 PNP
- Max Discrete (Switched) Output (mA)100
- Analog Voltage Output Rating1 kΩ min. load impedance
- Mechanical ShockIEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- VibrationMIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Number of Pins5
- Temperature Effect (mm/°C)0.2% of sensing distance/°C
- Minimum Sensing Distance (mm)300
- AdjustmentsTeach Button
- Power Supply15-24 V dc
- Max Sensing Distance (mm)2000
- Quick Disconnect TypeM12 (Euro)
- Analog Resolution/Discrete Repeatability+/- 0.25% of measured distance (1.0 min)
- IndicatorLED(s)
- Analog Output Configuration0-10 V dc
- ConnectionIntegral QD
- Input/OutputAnalog & Discrete
- Device TypeSensor
- Housing StyleBarrel
- Primary Housing MaterialPBT
- PowerDC
- Sensing Mode (Detailed)Time of Flight
- Sensing Mode (General)Proximity
- Sensing BeamUltrasonic
- PC ConfigurableNo
- Max Measurement Range>1 m - <=20 m
- Product series / family nameU-GAGE series
- Supply voltage (DC)15Vdc-24Vdc
- Sensing distance30cm...2m
- Ambient air temperature for operation-20...+70 °C
- Order code / Manufacturer SKU55993
- Main functionSensor (Distance)
- FunctionsLong-range ultrasonic distance sensor/transmitter green LED (power ON) yellow LED (discrete output / mode) red LED (signal) TEACH mode
- Connection typePre-equipped with 5-pin Euro-style M12 connector
- Primary brandBanner Engineering
- Sub-range nameT30U analog and discrete output series
- ShapeCylindrical smooth
- Digital outputs1 x digital output (PNP transistor)
- Protection functionsOverload Short-circuit
- Designtime-of-flight system
- Thread sizeM30
- Analog outputs1 x analog output (0-10Vdc)
- Compliant with standard(s)CE
- Mounting modeThreaded mount
- Materialthermoplastic housing
- Degree of protectionIP67 NEMA 6P
- Emission frequency128kHz
